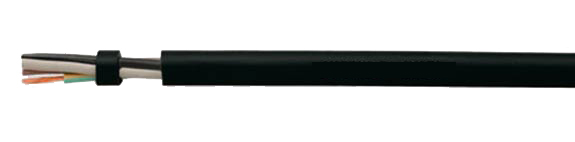

All-weather, Rubber & Welding Cable: H07 RN8-F
Waterproof, Rubber Outer Jacket, Harmonized Type

Hi-Tech Controls, Inc, HELUKABEL wires and cables

H07 RN8-F rubber outer jacket, harmonized type, Hi-Tech Controls, Helukabel
No. of Conductors Selection
1
 1
2
 2
3
 3
4
 4
5
 5

Helukabel
Part-No.		 Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm 		Cop. weight
kg/km 		Weight
ca. kg/km 		AWG
37287 H07 RN-F 1X1.5
 5.7 - 7.1 14.4 58.0 16
37288 H07 RN-F 1X2.5 6.3 - 7.9 24.0 71.0 14
37289 H07 RN-F 1X4 7.2 - 9.0 38.0 100.0 12
37290 H07 RN-F 1X6 7.9 - 9.8 58.0 130.0 10
37291 H07 RN-F 1X10 9.5 - 11.9 96.0 230.0 8
37292 H07 RN-F 1X16 10.8 - 13.4 154.0 290.0 6
37293 H07 RN-F 1X25 12.7 - 15.8 240.0 420.0 4
37294 H07 RN-F 1X35 14.3 - 17.9 336.0 530.0 2
37295 H07 RN-F 1X50 16.5 - 20.6 480.0 750.0 1
37296 H07 RN-F 1X70 18.6 - 23.3 672.0 960.0 2/0
37297 H07 RN-F 1X95 20.8 - 26.0 912.0 1250.0 3/0
37298 H07 RN-F 1X120 22.8 - 28.6 1152.0 1560.0 4/0
37299 H07 RN-F 1X150 25.2 - 31.4 1440.0 1900.0 300 kcmil
37300 H07 RN-F 1X185 27.6 - 34.4 1776.0 2300.0 350 kcmil
37301 H07 RN-F 1X240 30.6 - 38.3 2304.0 2950.0 500 kcmil
37302 H07 RN-F 1X300 33.5 - 41.9 2880.0 3600.0 600 kcmil
37303 H07 RN-F 1X400 37.4 - 46.8 3840.0 4600.0 750 kcmil
37304 H07 RN-F 1X500 41.3 - 52.0 4800.0 6000.0 1000 kcmil
37305 H07 RN-F 2X1
 7.7 - 10.0 19.0 98.0 17
37306 H07 RN-F 2X1.5 8.5 - 11.0 29.0 135.0 16
37307 H07 RN-F 2X2.5 10.2 - 13.1 48.0 193.0 14
37308 H07 RN-F 2X4 11.8 - 15.1 77.0 280.0 12
37309 H07 RN-F 2X6 13.1 - 16.8 115.0 330.0 10
37310 H07 RN-F 2X10 17.7 - 22.6 192.0 586.0 8
37311 H07 RN-F 2X16 20.2 - 25.7 307.0 810.0 6
37312 H07 RN-F 2X25 24.3 - 30.7 480.0 1160.0 4
Helukabel
Part-No.		 Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm 		Cop. weight
kg/km 		Weight
ca. kg/km 		AWG
37313 H07 RN-F 3G1
 8.3 - 10.7 29.0 130.0 17
37314 H07 RN-F 3G1.5 9.2 - 11.9 43.0 165.0 16
37315 H07 RN-F 3G2.5 10.9 - 14.0 72.0 235.0 14
37316 H07 RN-F 3G4 12.7 - 16.2 115.0 320.0 12
37317 H07 RN-F 3G6 14.1 - 18.0 173.0 420.0 10
37318 H07 RN-F 3G10 19.1 - 24.2 288.0 810.0 8
37319 H07 RN-F 3G16 21.8 - 27.6 461.0 1050.0 6
37320 H07 RN-F 3G25 26.1 - 33.0 720.0 1250.0 4
37321 H07 RN-F 3G35 29.3 - 37.1 1008.0 1900.0 2
37322 H07 RN-F 3G50 34.1 - 42.9 1440.0 2600.0 1
37323 H07 RN-F 3G70 38.4 - 48.3 2016.0 3400.0 2/0
37324 H07 RN-F 3G95 43.3 - 54.0 2736.0 4450.0 3/0
37325 H07 RN-F 3G120 47.4 - 60.0 3456.0 5180.0 4/0
37326 H07 RN-F 3G150 52.0 - 66.0 4320.0 6500.0 300 kcmil
37327 H07 RN-F 3G185 57.0 - 72.0 5328.0 7860.0 350 kcmil
37328 H07 RN-F 3G240 65.0 - 82.0 6192.0 10224.0 500 kcmil
37329 H07 RN-F 3G300 72.0 - 90.0 8640.0 12620.0 600 kcmil
37330 H07 RN-F 4G1
 9.2 - 11.9 38.0 150.0 17
37331 H07 RN-F 4G1.5 10.2 - 13.1 58.0 200.0 16
37332 H07 RN-F 4G2.5 12.1 - 15.5 96.0 290.0 14
37333 H07 RN-F 4G4 14.0 - 17.9 154.0 395.0 12
37334 H07 RN-F 4G6 15.7 - 20.0 230.0 540.0 10
37335 H07 RN-F 4G10 20.9 - 26.5 384.0 950.0 8
37336 H07 RN-F 4G16 23.8 - 30.1 614.0 1260.0 6
37337 H07 RN-F 4G25 28.9 - 36.6 960.0 1860.0 4
37338 H07 RN-F 4G35 32.5 - 41.1 1344.0 2380.0 2
37339 H07 RN-F 4G50 37.7 - 47.5 1920.0 3190.0 1
37340 H07 RN-F 4G70 42.7 - 54.0 2688.0 4260.0 2/0
37341 H07 RN-F 4G95 48.4 - 61.0 3648.0 5600.0

3/0
37342 H07 RN-F 4G120 53.0 - 66.0 4608.0 6830.0 4/0
37343 H07 RN-F 4G150 58.0 - 73.0 5760.0 8320.0 300 kcmil
37344 H07 RN-F 4G185 64.0 - 80.0 7104.0 9800.0 350 kcmil
37345 H07 RN-F 4G240 72.0 - 91.0 9216.0 12100.0 500 kcmil
37346 H07 RN-F 4G300 80.0 - 101.0 11520.0 15200.0 600 kcmil

Helukabel
Part-No.

 Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm 		Cop. weight
kg/km 		Weight
ca. kg/km 		AWG
37354 H07 RN-F 5G1.0
 10.2 - 13.1 48.0 175.0 4
37347 H07 RN-F 5G1.5 11.2 - 14.4 72.0 240.0 16
37348 H07 RN-F 5G2.5 13.3 - 17.0 120.0 345.0 14
37349 H07 RN-F 5G4 15.6 - 19.9 192.0 485.0 12
37350 H07 RN-F 5G6 17.5 - 22.2 288.0 650.0 10
37351 H07 RN-F 5G10 22.9 - 29.1 480.0 1200.0 8
37352 H07 RN-F 5G16 26.4 - 33.3 768.0 1550.0 6
37353 H07 RN-F 5G25 32.0 - 40.4 1200.0 2250.0 4
37355 H07 RN-F 6G1.5 13.4 - 17.2 87.0 171.0 4
37356 H07 RN-F 6G2.5 15.7 - 20.0 144.0 279.0 4
37357 H07 RN-F 12G1.5 17.6 - 22.4 173.0 340.0 4
37358 H07 RN-F 12G2.5 20.6 - 26.2 288.0 571.0 4

We can also have your company name printed on these cables.
Cables with print
Technical Data Helukabel
  • Waterproof heavy hose cable to DIN VDE 0282 part 16, HD 22.16 S1
  • Temperature Range
    Flexing -25°C/-13°F
    Fixed installation -40°C/-40°F
    In water max. +40°C/+104°F
  • Permissible Operating Temperature
    at conductor +60°C/+140°F
  • Nominal Voltage U0/U 450/750 V
    In case of protected and fixed installation
    U0/U 600/1000 V
  • Test Voltage 2500 V
  • Permanent Tensile Load
    Max. 15 N/mm²
  • Minimum Bending Radius
    For fixed installation 4x cable Ø
    Flexing 6x cable Ø
Approvals
RoHSCE VDE
Cable Construction
  • Copper conductor fine wire stranded, bare or tinned to DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383
  • Rubber conductor insulation EI4 to DIN VDE 0282 part 1
  • Conductor identification to DIN VDE 0293-308 and HD 186
  • Conductor colors
    Up to 5 conductor - one-color
    6 and more conductors - black with numbering
    3 and above - with green-yellow ground conductor
    2 conductors - without green-yellow ground conductor
  • Conductors stranded in layers with optimal lay-length
  • Special polychoroprene rubber outer jacket
  • Outer jacket: Black
Application

Waterproof heavy hose cable for connection of submerged pumps. For a recommended water depth to 10 m and max. water temperature to +40°C/+104°F. Can be used in dry, damp and wet areas as well as in open air.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • Resistant to
    Ozone
    Weather
  • Oil resistant
    Test according to EN 60811-2-1
  • Test of behavior compared to environmental influences
    Test according to DIN VDE 0482 part 265-2-1 / EN 50265-2-1 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • The core identification of a single core jacketed insulated wire is black. For application as a protective conductor, the ends are to be identified with green-yellow and the middle conductor with light blue.
Note
  • G = with green-yellow ground conductor
    x = without green-yellow ground conductor
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
Cable Accessories
  • Coming Soon!
