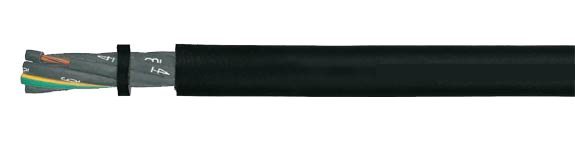

A07 RN-F rubber outer jacket, authorized national type, Allweather, Rubber & Welding Cable, Hi-Tech Controls, Helukabel

A07 RN-F with green-yellow protective conductor

Helukabel Part-No.	Description & No. Conductors x cross-sec. mm²	Outer Diameter mm	Cop. weight kg/km	Weight ca. kg/km	AWG
37069	A07 RN-F 7G1.5	14.0 - 17.5	101.0	370.0	16
37070	A07 RN-F 7G2.5	16.5 - 20.0	168.0	500.0	14
37071	A07 RN-F 12G1.5	17.6 - 22.4	173.0	520.0	16
37072	A07 RN-F 12G2.5	20.6 - 26.2	288.0	720.0	14
37073	A07 RN-F 19G1.5	21.5 - 25.5	274.0	800.0	16
37078	A07 RN-F 19G2.5	25.0 - 29.5	456.0	1100.0	14
37074	A07 RN-F 24G2.5	28.8 - 36.4	576.0	1350.0	14
37075	A07 RN-F 27G1.5	25.5 - 31.5	385.0	1100.0	16
37076	A07 RN-F 27G2.5	30.0 - 37.0	640.0	1521.0	14
37077	A07 RN-F 37G2.5	34.0 - 37.5	720.0	1940.0	14

A07 RN-F without green-yellow protective conductor

Helukabel Part-No.	Description & No. Conductors x cross-sec. mm²	Outer Diameter mm	Cop. weight kg/km	Weight ca. kg/km	AWG
37080	A07 RN-F 3x1.5	9.2 - 11.9	43.0	165.0	16
37081	A07 RN-F 3x2.5	10.9 - 14.0	72.0	235.0	14
37082	A07 RN-F 3x4	12.7 - 16.2	115.0	320.0	12
37083	A07 RN-F 3x6	14.1 - 18.0	173.0	495.0	10
37084	A07 RN-F 3x10	19.1 - 24.2	288.0	880.0	8
37085	A07 RN-F 3x16	21.8 - 27.6	461.0	1095.0	6
37086	A07 RN-F 3x25	26.1 - 33.0	720.0	1450.0	4
37087	A07 RN-F 3x35	29.3 - 37.1	1008.0	1900.0	2
37088	A07 RN-F 3x50	34.1 - 42.9	1440.0	2600.0	1
37089	A07 RN-F 4x10	20.9 - 26.5	384.0	1065.0	8
37090	A07 RN-F 4x25	28.9 - 36.6	960.0	1995.0	4

We can also have your company name printed on these cables. Cables with print

Technical Data

Helukabel

Rubber outer jacket cable A07 RN-F to DIN VDE 0282 part 4
Temperature Range
-30°C to +60°C (-22°F to +140°F)
Permissible Operating Temperature
at conductor +60°C/+140°F
Nominal Voltage U₀/U 450/750 V
In case of protected and fixed Installation
U₀/U 600/1000 V

Max. permissible Operating Voltage in
three phase and one phase a.c. system
U₀/U 476/825 V
Direct current-system U₀/U 619/1238 V
Test Voltage 2500 V
Permanent Tensile Load
Max. 15 N/mm² under consideration of total copper cross-sections
Minimum Bending Radius
For fixed installation 4x cable Ø
For guiding over roller 7.5x cable Ø
During winding on drums 5-7x cable Ø

Approvals

Cable Construction

Copper conductor fine wire stranded, bare to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
Rubber conductor insulation EI4 to DIN VDE 0281 part 1
Insulation thickness to DIN VDE 0282 part 4
Conductor identification to DIN VDE 0293-308
Conductor colors:
6 and more conductors - green-yellow
Other conductors - black with numbering
Conductors stranded in layers in optimal lay-length
Outer jacket of rubber: Black, rubber compound to DIN VDE 0281 part 1
Jacket thickness to DIN VDE 0282 part 4

Application

Heavy duty rubber-outer jacket flexible cables are suited for use for medium mechanical stress in dry, damp and wet areas as well as in open air and in agriculture plants.
They are used for equipment in industry works such as boilers, heating plates, hand lamps, electric tools such as drills, circular saws and tools for home use as well as for transportable motors or machines at site.
These cables are also suitable for fixed installation on plaster, in temporary buildings and residential barracks. They are suitable for direct laying on components and mechanical parts of machines, for example lifts and cranes.
They can be used in case of protected and fixed installation in tubes or in equipment as well as rotor connecting cable of motors with a working voltage up to 1000 V alternating voltage or a direct voltage up to 750 V against ground. The operating direct voltage is permitted up to 900 V against ground when they are used in rail-coaches. Installation in hazardous areas according to DIN VDE 0165 is allowed.
= The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.

Properties

Resistant to
Ozone
Weather
Test
Behavior in fire to DIN VDE 0482 part 265-2-1 / EN 50265-2-1 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
Ozone resistant of the insulation to DIN VDE 0472 part 805, test method A or part 805 A1, test method C

Note

G = with green-yellow earth conductor
x = without green-yellow earth conductor
AWG sizes are approximate equivalent values. The actual cross-section is in mm².
A07 RN-F = Authorized national cable with rubber outer jacket, nominal voltage 750 V, fine wire stranded
Valid for design with central conductor + 7 conductors
The core identification of a single core jacketed insulated wire is black. For application as a protective conductor, the ends are to be identified with green-yellow and the middle conductor with light blue.
