PVC-single conductors
according to DIN VDE
0281 part 7 and HD 21.7
S2, UL-Std. 1063, UL-Style
1015 and CSA-TEW and
CSA-AWM I/A/B
Temperature
Range H05 V2-K/H07
V2-K
Flexing
+5°C to +90°C (+41°F to +194°F)
Fixed Installation
-40°C
to +90°C (-40°F to +194°F)
UL (AWM) +105°C/+221°F
UL (MTW) +90°C/+194°F
CSA (TEW) +105°C/+221°F
Nominal Voltage H05 V2-K:
U0/U 300/500
V (up to 1 mm²)
H07 V2-K: U0/U
450/750 V (1.5 mm²)
UL/CSA 600 V AC, 750
V DC
Test Voltage H05 V2-K / H07
V2-K 2000 V
Spark Test
AWG 20: 5 kV
> AWG 20: 6 kV
Insulation
Resistance
Min. 20 MOhm x km
Minimum Bending
Radius For permanent
bending
Ca. 10-15 x conductor Ø
Approvals
Cable
Construction
Bare copper fine wire stranded
to DIN VDE 0295 cl. 5, BS 6360
cl. 5, HD 383 and IEC 60228 cl.
5 and UL Subject 758 Section
G
PVC conductor insulation TI3
to DIN VDE 0281 part 1 and UL Std.
1581, class 43, CSA-C 22.2 No.
210 Tab. 12 class H
Conductor colors to DIN VDE 0293
2-colour combination - Part No.
on request
Application

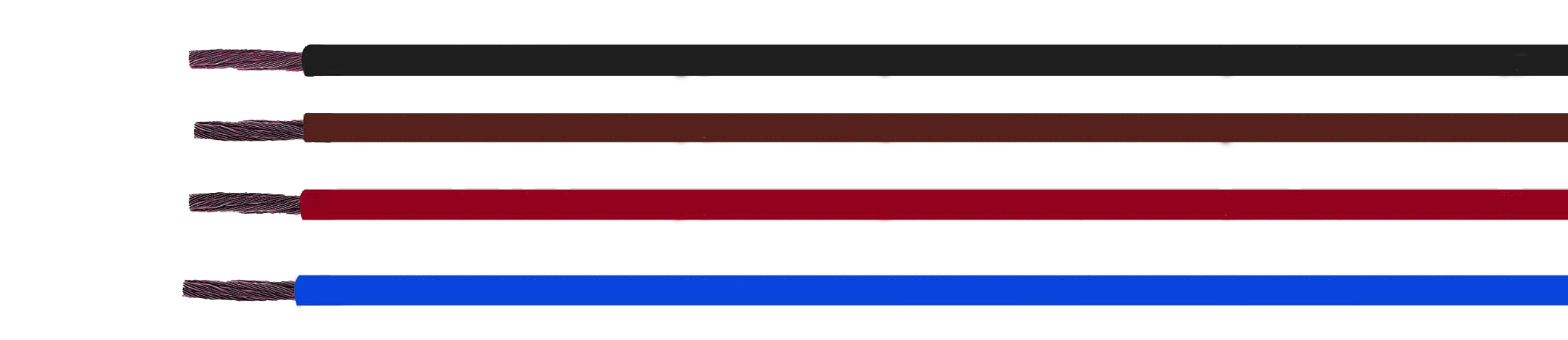

Hook-up wire is a single conductive wire. Five
norms approved connecting
jumper wire primarily designed
for export, used in machine
tools. The approbation
of HAR, UL-AWM, UL-MTW,
CSA-AWM, CSA-Equipment
wire make an economical
store keeping and simplification
of part lists possible. Hook-up wire (hookup wire) is a single conductive wire. =
The product
is conformed
with
the EC
Low-Voltage
Directive
2006/95/EG.
Properties
PVC self-extinguishing and flame
retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1
(equivalent DIN VDE 0472 part 804
test method B) UL-VW1 CSA FT1
The materials used in manufacture
are cadmium-free, contain no silicone
and are free from substances harmful
to the wetting properties of lacquers
Note
Tinned conductor on request
The cross-sections 0.5 mm²,
0.75 mm² and 1.0 mm² are
according to H05 V2-K, the cross-sections
1.5 up to 35 mm² according
to H07 V2-K, the cross-sections >35
mm² are identified as H07
V-K.
Cross-sections up to 35 mm² is
according to DIN VDE 0281 part
5. Due to this cross-section >35
mm² is the type but with an
increased heat-resistant PVC-compound.
Type H05 V:
Approved one color mark: black, blue, brown, grey, orange, pink, red, turquiose, violet, white, green and yellow. Two-colored mark in any combination of the above individual colors.
Type H07 V:
Approved mark: black, blue, brown, grey, orange, pink, red, turquiose, violet, white, and green-yellow. Other marks are available as (H).
