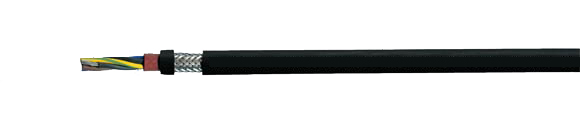

Heat-Resistant Cable: THERMFLEX 180 EWKF-C

Halogen-Free, Silicone Multi Conductor Cable, +180°C/+356°F, Copper Shielded, EMI Preferred Type

Sealcon, Inc, European & Domestic cable

THERMFLEX 180 EWKF-C halogen-free, silicone multi conductor cable, +180�C, Cu shielded, EMI preferred type, RoHS Compliant, RoHS Approved, Sealcon, European  , Heat Resistant / Compensating Cables
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer Diameter
mm
Copper Weight
kg/km
Weight ca. kg/km AWG
79804 THERMFLEX 180 EWKF-C 2x0.75 9.0 61.4 124.0 18
79805 THERMFLEX 180 EWKF-C 3G0.75 9.4 69.1 136.0 18
79806 THERMFLEX 180 EWKF-C 4G0.75 10.4 86.7 160.0 18
79807 THERMFLEX 180 EWKF-C 5G0.75 11.2 95.2 180.0 18
79808 THERMFLEX 180 EWKF-C 2x1 9.4 66.7 132.0 17
79809 THERMFLEX 180 EWKF-C 3G1 9.8 86.2 154.0 17
79810 THERMFLEX 180 EWKF-C 4G1 10.7 96.8 176.0 17
79811 THERMFLEX 180 EWKF-C 5G1 11.6 108.3 207.0 17
79812 THERMFLEX 180 EWKF-C 2x1.5 10.8 87.7 170.0 16
79813 THERMFLEX 180 EWKF-C 3G1.5 11.2 103.5 190.0 16
79814 THERMFLEX 180 EWKF-C 4G1.5 12.0 131.7 231.0 16
79815 THERMFLEX 180 EWKF-C 5G0.5 12.8 148.5 282.0 16
79816 THERMFLEX 180 EWKF-C 7G1.5 13.6 193.4 342.0 16
701219 THERMFLEX 180 EWKF-C 12G1.5 17.2 298.4 531.0 16
79817 THERMFLEX 180 EWKF-C 16G1.5 20.0 362.3 660.0 16
79818 THERMFLEX 180 EWKF-C 20G1.5 21.3 405.1 766.0 16
79819 THERMFLEX 180 EWKF-C 2X2.5 12.0 122.3 230.0 14
79820 THERMFLEX 180 EWKF-C 3G2.5 12.9 147.7 275.0 14
79821 THERMFLEX 180 EWKF-C 4G2.5 13.9 188.6 340.0 14
79822 THERMFLEX 180 EWKF-C 5G2.5 14.8 214.9 395.0 14
79823 THERMFLEX 180 EWKF-C 2X4 14.2 137.0 308.0 12
79824 THERMFLEX 180 EWKF-C 3G4 14.9 178.1 364.0 12
79825 THERMFLEX 180 EWKF-C4G4 16.0 294.0 511.0 12
79826 THERMFLEX 180 EWKF-C 5G4 17.4 374.0 630.0 12
79827 THERMFLEX 180 EWKF-C2X6 15.8 185.0 418.0 10
79828 THERMFLEX 180 EWKF-C 3G6 16.6 241.0 612.0 10
79829 THERMFLEX 180 EWKF-C 4G6 18.6 449.0 781.0 10
79830 THERMFLEX 180 EWKF-C 5G6 20.0 563.0 980.0 10
Technical Data European
  • in adapted to DIN VDE 0250 part 816
  • Temperature Range
    Flexing
    -25°C to +180°C (-13°F to +356°F)
    Fixed Installation
    -60°C to +180°C (-76°F to +356°F)
    (short time operation +220°C/+428°F)
  • Nominal Voltage U0/U 300/500 V
  • Test Voltage 2000 V
  • Insulation Resistance
    Min. 200 MOhm x km
  • Minimum Bending Radius
    Flexing 10x cable Ø
    Fixed Installation 5x cable Ø
  • Coupling Resistance
    Max. 250 Ohm/km
  • Radiation Resistance
    Up to 20x106 cJ/kg (up to 20 Mrad)
  • Insulation Integrity continuance of insulation effects under fire condition according to IEC 60331 and DIN VDE 0472 part 814
  • Halogen-Free according to DIN VDE 0482 part 267/ EN 50267-2-2/ IEC 60754-2 (equivalent DIN VDE 0472 part 813)
  • Behavior in Fire no flame propagation, test according to DIN VDE 0482 part 265-2-1/ EN 50265-2-1/ IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
Approvals
RoHSCE VDE
Cable Construction
  • Tinned copper conductor, stranded to DIN VDE 0295, cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • Silicone conductor insulation, 2GI1 to DIN VDE 0207 part 20
  • Conductor identification to DIN VDE 0293-308
    up to 5 conductors one-colored,
    6 and more conductors black with white numbering
  • Green-yellow grounding (3 conductors and above)
  • Conductors stranded in layers with optimal lay-length
  • Special silicone inner jacket
  • Tinned copper braided shielding, covering approx. 85%
  • Silicone outer jacket, 2GM1 to DIN VDE 0207 part 21
  • Jacket color: Black (RAL 9005)
Application
These cables are ideal for use where increased mechanical stresses for the installation and operation are required. Silicone-rubber-insulated cables are used for all applications where the cable insulation is subjected to high temperature fluctuations. Suitable for installation at high temperature influence in dry, damp and in the open air. As flexible connecting cable for low mechanical stress i.e. sauna, solar installations, foundries and steel plants. This cable can be used for fixed installation only in open and ventilated cable tubes and cable ducts. An interference-free transmission of signals and pulse is assured by the high shielding density. The ideal interference-protected silicone multi conductor flexible cable for such applications as given above.
FRNC = Flame Retardant Non Corrosive
All silicon cables are available also in FRNC versions. The jacket designed with special-compound conform flame test method C to DIN VDE 0472 part 804 and IEC 60332-3 as well as HD 405.3. This special compound is self-extinguishing. Because of that these cables can be installed as seCurity cable with functionality as for example in communal buildings, power stations, hotels, airports etc.
EMI = Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of the Cu braiding on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • Smoke density - low
  • Due to the special abrasive and notch resistant outer jacket, these cables are suitable for heavy loading of mechanical stresses
  • Minimal changes of dielectric strength and the insulation resistance also at high temperatures
  • High ignition or flash point
  • In case of fire, forms an insulating layer of SiO2
  • Resistant to high molecular oils, fats from vegetables and animals, alcohols, plasticizers and clophenes, diluted acids, lye and salt dissolution, oxidation substances, tropical influences and weather, lake water, oxygen and ozone
Note
  • G = with green-yellow grounding
    x = without green-yellow grounding
  • EWKF = Improved values to E=tearing resistance, W=breaking strength propagation, K=notch strength, F=flexibility
  • Unshielded type: THERMFLEX 180 EWKF
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
