Radiation Resistance Up to 20x106 cJ/kg
(up to 20 Mrad)
Insulation Integrity continuance
of insulation effects under
fire condition according
to IEC 60331 and DIN VDE
0472 part 814
Freedom from
Halogen (corrosiveness
of combustion gases)
according to DIN VDE
0482 part 267 / EN 50267-2-2 /
IEC 60754-2 (equivalent
DIN VDE 0472 part 813)
Behavior in Fire no
flame propagation, test
according to DIN VDE 0482
part 265-2-1 / EN 50265-2-1 /
IEC 60332-1 (equivalent
DIN VDE 0472 part 804 test
method B)
Approvals

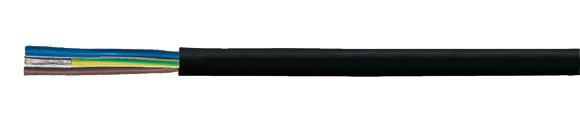

Cable
Construction
Tinned copper conductor, stranded
to DIN VDE 0295, cl. 5, BS 6360
cl. 5 and IEC 60228 cl. 5
Silicone conductor insulation, 2GI1
to DIN VDE 0207 part 20
Conductor identification to DIN VDE
0293-308
up to 5 conductors one-colored,
6 and more conductors black with white
numbering
Green-yellow grounding (3 conductors
and above)
Conductors stranded in layers with
optimal lay-length
Silicone outer jacket, 2GM1 to
DIN VDE 0207 part 21
Jacket color: Black (RAL 9005)
Different dimensions also approved by Germanisher Lloyd on request
Application
These
cables are ideal for use
every place where increased
mechanical stresses for the
installation and operation
are required. Silicone-rubber-insulated
cables are used for all applications
where the cable insulation
is subjected to high temperature
fluctuations. Suitable for
installation at high temperature
influence in dry, damp and
in the open air. As flexible
connecting cable for low
mechanical stress i.e. sauna,
solar installations, foundries
and steel plants. This cable
can be used for fixed installation
only in open and ventilated
cable tubes and cable ducts. FRNC = Flame Retardant Non Corrosive
All silicon cables are available
also in FRNC versions. The
jacket designed with special-compound
conform flame test method C
to DIN VDE 0472 part 804 and
IEC 60332-3 as well as HD 405.3.
This special compound is self-extinguishing.
Because of that these cables
can be installed as security
cable with functionality as
for example in communal buildings,
power stations, hotels, airports
etc. =
The product is conformed with
the EC Low-Voltage Directive
73/23/EEC and 93/68/EEC.
Properties
Smoke density - low
Due to the special abrasive and
notch resistant outer jacket, these
cables are suitable for heavy loading
of mechanical stresses
Mimimal changes of dielectric
strength and the insulation resistance
also at high temperatures
High ignition or flash point
In case of fire, forms an insulating
layer of SiO2
Resistant
to
high molecular
oils, fats
from vegetables
and animals,
alcohols,
plasticizers
and clophenes,
diluted
acids,
lye and
salt dissolution,
oxidation
substances,
tropical
influences
and weather,
lake water,
oxygen
and ozone
Note
G = with green-yellow grounding
x = without green-yellow earth
conductor
