Halogen-free according to DIN VDE 0482
part 267 / DIN EN 60332-1-2 / IEC 60332-1
(equivalent DIN VDE 0472 part 815)
Behavior in fire no flame
propagation
test according to DIN VDE 0482 part
265-2-1/ EN 50265-2-1/ IEC 60332-1
(equivalent DIN VDE 0472 part 804 test
method B)
Application
UL-CSA approved
Silicone cables were evolved for
use wherever insulation is subjected
to extreme temperature changes.
The good performance of the environmental
resistant properties means that
silicone cables can be used at
temperatures down to -60°C/-76°F.
Silicone cables are halogen-free
cables and are especially suited
for installation in power stations.
They have also found their uses
in the steel producing industries,
aviation industry, ship building
as well as in ceramic, glass and
cement factories. Due to elastic
characteristic of conductor insulations,
these are used as flexible connection
cable.

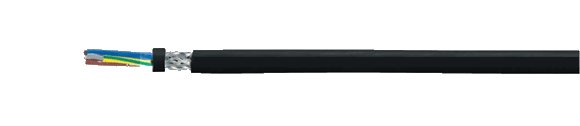

An interference-free transmission
of signals and pulse is assured by
the high shielding density. The ideal
interference-protected silicone multi
conductor flexible cable for such applications
as given above. EMI =
Electromagnetic
Interference
To optimize the EMI features we recommend
a large round contact of the copper
braiding on both ends. =
The product is conformed with the
EC Low-Voltage Directive 73/23/EEC
and 93/68/EEC.
Properties
Advantages Minimal changes of dielectric
strength and the insulation resistance
also at high temperatures, high ignition
or flash point, in case of fire, forms
an insulating layer of SiO2
Resistant to high
molecular oils,
fats from vegetables
and animals,
alcohols, plasticizers
and clophenes,
diluted acids,
lye and salt
dissolution,
oxidation substances,
tropical influences
and weather,
lake water,
oxygen and
UV
For laying as a fixed installation
only in open or ventilated pipe systems
as well as in ducts. Otherwise the mechanical
properties of the silicon are reduced
by the enclosed air at temperatures exceeding
+90°C/+194°F.
Note
G = with green-yellow grounding
x = without green-yellow grounding (OB)
AWG sizes are approximate equivalent
values. The actual cross-section is in
mm².
