Special silicone single conductor
cable with higher heat-resistance
range adapted to DIN VDE 0250
part 1 and part 502
Temperature Range -60°C to +180°C (-76°F to +356°F)
(up
to +220°C/+428°F for short time)
Temperature Limit at the Conductor
In operation +180°C/+356°F
Nominal Voltage VDE U0/U 300/500 V
Test Voltage 2000
V
Breakdown Voltage min.
5000 V
Minimum Bending Radius 15x cable Ø
(SiD only for permanent installation)
Radiation Resistance Up to 20x106 cJ/kg (up
to 20 Mrad)
Approvals

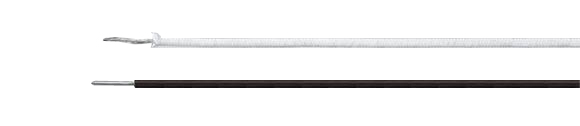

Cable
Construction
Type SiF/GL
Tinned copper conductors
≥0.5 mm2 to DIN VDE 0295
cl. 5, BS 6360 cl. 5 and IEC 60228 cl.
5
for 0.25 mm2 = 14x0.15 mm
Silicone conductor insulation
Glass fiber braiding
Type SiD
Solid tinned copper conductor silicone
insulated
Type SiD/GL
as SiD but with additional glass fiber
braiding
Application
Special cables
for use in high or low temperature
areas. They are used mainly in
the steel producing industries,
in aviation industries as well
as in ship building, cement, glass
and ceramic factories, especially
suited for use in power stations
(halogen-free). =
The product
is conformed
with
the EC
Low-Voltage
Directive
2006/95/EG.
Properties
Advantages: High ignition or flash
point
Resistant to high molecular oils, fats
from vegetables and animals, alcohols,
plasticizers and clophenes, diluted
acids, lye and salt dissolution,
oxidation substances, tropical
influences and weather, lake water,
oxygen
Halogen-free according to DIN VDE 0482
part 267 / DIN EN 50267-2-2 / IEC 60754-2
(equivalent DIN VDE 0472 part 813)
Behavior in fire no flame propagation
test according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC
60332-1 (equivalent DIN VDE 0472
part 804 test method B)
For laying as a fixed installation
only in open or ventilated pipe
systems as well as in ducts. Otherwise
the mechanical properties of the
silicon are reduced by the enclosed
air at temperatures exceeding +90°C/+194°F.
Note
Please complete the part number for
these cables by adding the suffix for
the color as required
