Helukabel Flat & Ribbon Cable: Ribbon Cables

Type L, Type L AWG 28, Type D

Hi-Tech Controls, Inc, HELUKABEL wires and cables

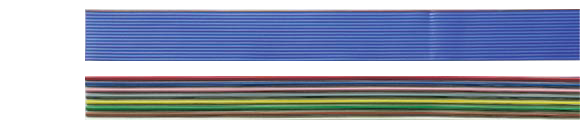

Ribbon Cables Type L, Type L AWG 28, Type D, RoHS Approved, RoHS Compliant, Hi-Tech Controls, Helukabel
Type L
Type L AWG 28
Type D
Standard Color Code (Not to DIN 47100)
  • 1 = white
  • 2 = brown
  • 3 = green
  • 4 = yellow
  • 5 = gray
  • 6 = pink
  • 7 = blue
  • 8 = red
  • 9 = black
  • 10 = violet
  • 11 = white-brown
  • 12 = white-green
  • 13 = white-yellow
  • 14 = white-gray
  • 15 = white-pink
  • 16 = white-blue
  • 17 = white-red
  • 18 = white-black
  • 19 = brown-green
  • 20 = brown-yellow
  • 21 = brown-gray
  • 22 = brown-pink
  • 23 = brown-blue
  • 24 = brown-red
  • 25 = brown-black
  • 26 = green-gray
  • 27 = green-pink
  • 28 = green-blue
  • 29 = green-red
  • 30 = green-black
  • 31 = yellow-gray
  • 32 = yellow-pink
  • 33 = yellow-blue
Helukabel Part-No. Description & No. Conductors x
cross-sec. mm2		 Outer
Dimensions
mm 		Copper Weight
kg/km 		Weight
ca. kg/km 		AWG
44001 Ribbon Cable Type L, 2X0.14 3.9 x 1.4 2.7 7.0 26
44002 Ribbon Cable Type L, 3X0.14 6.4 x 1.4 4.0 11.0 26
44003 Ribbon Cable Type L, 4X0.14 8.9 x 1.4 5.4 14.0 26
44004 Ribbon Cable Type L, 5X0.14 11.3 x 1.4 6.7 18.0 26
44005 Ribbon Cable Type L, 6X0.14 13.9 x 1.4 8.1 21.0 26
44006 Ribbon Cable Type L, 7X0.14 16.4 x 1.4 9.4 25.0 26
44007 Ribbon Cable Type L, 8X0.14 18.9 x 1.4 10.7 28.0 26
44008 Ribbon Cable Type L, 9X0.14 21.4 x 1.4 13.4 32.0 26
44009 Ribbon Cable Type L, 10X0.14 23.9 x 1.4 14.4 35.0 26
44010 Ribbon Cable Type L, 11X0.14 26.4 x 1.4 15.3 39.0 26
44011 Ribbon Cable Type L, 12X0.14 28.9 x 1.4 16.1 42.0 26
44012 Ribbon Cable Type L, 16X0.14 38.9 x 1.4 21.5 56.0 26
44013 Ribbon Cable Type L, 20X0.14 48.9 x 1.4 27.0 70.0 26
44014 Ribbon Cable Type L, 4X0.25 9.1 x 1.6 9.6 21.0 24
44015 Ribbon Cable Type L, 5X0.25 11.6 x 1.6 12.0 26.0 24
44016 Ribbon Cable Type L, 6X0.25 14.1 x 1.6 14.4 31.0 24
44017 Ribbon Cable Type L, 7X0.25 16.6 x 1.6 16.8 36.0 24
44018 Ribbon Cable Type L, 8X0.25 19.1 x 1.6 19.2 42.0 24
44019 Ribbon Cable Type L, 10X0.25 24.1 x 1.6 24.0 52.0 24
44020 Ribbon Cable Type L, 12X0.25 29.1 x 1.6 28.8 62.0 24
44021 Ribbon Cable Type L, 16X0.25 39.1 x 1.6 38.4 83.0 24
44022 Ribbon Cable Type L, 20X0.25 49.1 x 1.6 48.0 104.0 24
44023 Ribbon Cable Type L, 4X0.5 9.0 x 2.0 19.2 38.0 20
44024 Ribbon Cable Type L, 5X0.5 12.0 x 2.0 24.0 48.0 20
44025 Ribbon Cable Type L, 6X0.5 15.0 x 2.0 28.8 57.0 20
44026 Ribbon Cable Type L, 7X0.5 17.0 x 2.0 33.6 66.0 20
44027 Ribbon Cable Type L, 8X0.5 20.0 x 2.0 38.4 76.0 20
44028 Ribbon Cable Type L, 10X0.5 23.0 x 2.0 48.0 95.0 20
44029 Ribbon Cable Type L, 12X0.5 30.0 x 2.0 58.0 114.0 20
44030 Ribbon Cable Type L, 16X0.5 40.0 x 2.0 77.0 151.0 20
44031 Ribbon Cable Type L, 20X0.5 50.0 x 2.0 101.0 190.0 20
44032 Ribbon Cable Type L, 4X0.75 10.6 x 2.5 29.0 52.0 18
44033 Ribbon Cable Type L, 5X0.75 13.3 x 2.5 36.0 64.0 18
44034 Ribbon Cable Type L, 6X0.75 16.0 x 2.5 43.2 77.0 18
44035 Ribbon Cable Type L, 7X0.75 18.7 x 2.5 50.0 90.0 18
44036 Ribbon Cable Type L, 8X0.75 21.4 x 2.5 58.0 103.0 18
44037 Ribbon Cable Type L, 10X0.75 26.8 x 2.5 72.0 130.0 18
44038 Ribbon Cable Type L, 12X0.75 32.2 x 2.5 86.0 155.0 18
44039 Ribbon Cable Type L, 16X0.75 43.0 x 2.5 112.0 206.0 18
44040 Ribbon Cable Type L, 20X0.75 53.4 x 2.5 151.0 260.0 18

Helukabel
Part-No.		 Description & No. Conductors x
cross-sec. mm2		 Outer
Dimensions		 Copper Weight
kg/km 		Weight
ca. kg/km 		AWG
44041 Ribbon Cable Type L AWG 28, 10X0.08 12.7 x 0.9 13.4 30.0 28
44042 Ribbon Cable Type L AWG 28, 14X0.08 17.8 x 0.9 18.0 50.0 28
44043 Ribbon Cable Type L AWG 28, 16X0.08 20.3 x 0.9 20.0 53.0 28
44044 Ribbon Cable Type L AWG 28, 20X0.08 25.4 x 0.9 25.0 65.0 28
44045 Ribbon Cable Type L AWG 28, 26X0.08 33.0 x 0.9 32.0 75.0 28
44046 Ribbon Cable Type L AWG 28, 34X0.08 43.2 x 0.9 43.0 90.0 28
44047 Ribbon Cable Type L AWG 28, 40X0.08 50.8 x 0.9 48.0 125.0 28
44048 Ribbon Cable Type L AWG 28, 48X0.08 61.0 x 0.9 59.0 145.0 28

Helukabel Part-No. Description & No. Conductors x
cross-sec. mm2		 Outer
Dimensions		 Copper Weight
kg/km 		Weight
ca. kg/km 		AWG
44049 Ribbon Cable Type D, 2X0.5 3.9 x 1.4 10.0 10.0 20
44050 Ribbon Cable Type D, 3X0.5 6.4 x 1.4 14.0 14.0 20
44051 Ribbon Cable Type D, 4X0.5 8.9 x 1.4 19.0 17.0 20
44052 Ribbon Cable Type D, 5X0.5 11.4 x 1.4 24.0 21.0 20
44053 Ribbon Cable Type D, 6X0.5 13.9 x 1.4 29.0 25.0 20
44054 Ribbon Cable Type D, 7X0.5 16.4 x 1.4 34.0 29.0 20
44055 Ribbon Cable Type D, 8X0.5 18.9 x 1.4 38.0 33.0 20
44056 Ribbon Cable Type D, 9X0.5 21.4 x 1.4 42.0 37.0 20
44057 Ribbon Cable Type D, 10X0.5 23.9 x 1.4 48.0 41.0 20
44058 Ribbon Cable Type D, 11X0.5 26.4 x 1.4 56.0 47.0 20
Technical Data Helukabel
Type L (Stranded Wire)
  • Pitch 2.54 mm
  • Nominal Voltage
    0.14 mm2 = 350 V
    0.25 to 0.75 mm2 = 600 V
  • Test Voltage
    0.14 mm2=1200 V
    0.25 to 0.75 mm2=2000 V
 Type L AWG 28 (stranded wire)
  • Pitch 1.27 mm
  • Heat Resistance up to +105°C/+221°F
  • Nominal Voltage 300 V
  • Test Voltage 2000 V



Type D (solid)

  • Pitch 2.5 mm
  • Nominal Voltage 3500 V
  • Test Voltage 1500 V


Approvals
RoHSCE
Cable Construction
  • Type L (stranded wire)
    • Tinned copper, fine wire stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5
    • PVC conductor insulation, flame retardant
    • Conductors color coded
    Type L AWG 28 (stranded wire)
    • Tinned copper 7x0.127
    • PVC conductor insulation, flame retardant
    • Conductors molded, can be separated easily
    • Conductors single colored, edge marking on one side
    Type D (solid)
    • Copper-solid, tinned 0.5 mm Ø
    • PVC conductor insulation
    • Conductors molded, can be separated easily
    • Conductors color coded
Application
Ribbon cables are used as connecting and control cables wherever there is a need to install quickly and with a minimum waste of space. These cables offer an excellent degree of flexibility.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
Type L AWG 28 ( stranded wire)
  • PVC self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
Note
  • The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
