Radiation Resistance Up to 50x106 cJ/kg (up
to 50 Mrad)
Approvals
Cable
Construction
Bare copper, extra fine wire
conductors according to DIN VDE
0295 Kl. 6 and IEC 60228 cl. 6,
BS 6360 cl. 6
Special rubber conductor insulation
Conductor identification
up to 5 conductors to color code DIN
VDE 0293
7 conductors and above with number printing
Conductors shielded individually
Conductors laying parallel
Copper shielded braiding, approx.
85% coverage
Special Neoprene outer jacket:
Black (RAL 9005)
Application

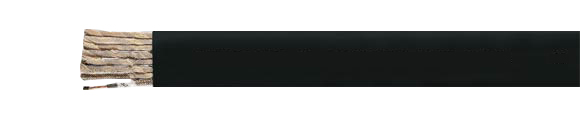

Neoprene shielded flat cables are
used mainly as trailing cable for
crane installations, floor conveyer
systems and shelf control units.
These cables are also available for
export with UL-approval.
Installation
notes: Cables reels with flat cables
must be transported in standing position
on the flange. A bending flexibility
can be achieved on a plane surface.
For this purpose, the corresponding
fitting instructions should be followed.
Put the
cable trolley on the guiding
rail or upon carrier beam and
push them together at the starting
point. The distance between the
bedding surface of two cable
trolleys must be wider than the
double thickness of a cable-packet.
During
the packaging performance, it
must be started with the smaller
cross-section which lays on the
bedding surface and will be built
successively so that the biggest
cross-section is laying on the
top.
Further, be careful of a symmetrical
load distribution.
In case
of multi conductor flat cables with
small cross-section, smaller
than 2.5 mm², is very critical
due to its low tensile stress.
In such case, you should add 10%
reserve wire for calculation.
EMI =
Electromagnetic Interference
To optimize the EMI features we recommend
a large round contact of the copper
braiding on both ends.
= The product
is conformed
with the
EC Low-Voltage
Directive
73/23/EEC
and 93/68/EEC.
Properties
Outer jacket cold resistant
Extensively oil resistant
Extremely small bending radius
High flexibility
Minimum waste of space
Packaging possibility
The high degree of shielding density
assures disturbance-free transmission
of all signal and impulses
Test according to DIN VDE 0482 part
265-2-1/ EN 50265-2-1/ IEC 60332-1
(equivalent DIN VDE 0472 part 804 test
method B)
Note
G = with green-yellow earth conductor
AWG sizes are approximate equivalent
values. The actual cross-section is in
mm².
