Data, Network & BUS Cable:
Industrial Ethernet PROFInet Type A |
|
 |
| Radiation Resistant & Armored |
|
|
| Type/Area
of Application |
Ray
Loaded Areas |
Fixed
Installation, Outdoor |

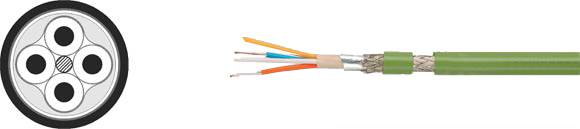

| Cable
Construction |
2x2x0.64
mm |
2x2x0.64
mm |
|
| Inner
Conductor Diameter: |
Copper,
bare (AWG 22/1) |
Copper,
bare (AWG 22/1) |
| Conductor Insulation: |
XLPE
ray cross-linking |
PE |
| Conductor Colors: |
white,
yellow, blue, orange |
white,
yellow, blue, orange |
| Stranding Element: |
Star quad |
Star quad |
| Shielding 1: |
Polyester
foil over stranded bundle |
Polyester
foil over stranded bundle |
| Shielding 2: |
Polyester foil,
aluminum-lined |
Polyester foil,
aluminum-lined |
| Total Shielding: |
Copper braid, tinned |
Copper braid, tinned |
| Armoring: |
- |
Steel Rib |
| Inner Jacket
Material: |
TPR
ray cross-linking |
PVC |
| Outer Jacket
Material: |
PUR |
PE |
| Outer Diameter: |
Approx. 6.5 mm ± 0.2
mm |
Approx. 9.3 mm ± 0.5
mm |
| Outer Jacket
Color: |
Green similar
to RAL 6018 |
Black |
|
|
|
| |
|
|
| |
|
| |
|
| Characteristic
Impedance: |
100
Ohm ± 15 Ohm (1-100 MHz) |
100
Ohm ± 15 Ohm (1-100 MHz) |
| Conductor
Resistance: |
62.0 Ohm/km
max. |
62.0 Ohm/km
max. |
| Insulation
Resistance: |
0.50 GOhm
x km min. |
0.50 GOhm
x km min. |
| Mutual
Capacitance: |
50.0 nF/km
nom. |
50.0 nF/km
nom. |
| Test Voltage: |
2.0 kV |
2.0 kV |
|
| Frequency (MHz) |
10 |
16 |
62.5 |
100 |
| Attenuation (dB/10m) |
5.2 |
6.9 |
15.0 |
19.5 |
| Next (dB) |
70.0 |
65.0 |
55.0 |
50.0 |
| ACR (dB) |
64.8 |
58.1 |
40.0 |
30.5 |
|
| Weight: |
Approximately
63.0
kg/km |
Approximately
124.0 kg/km |
| Min. Bending
Radius (Laying): |
46.0
mm |
93.0
mm |
| Operating
Temp. Range, min.: |
-40°C/-40°F |
-40°C/-40°F |
| Operating
Temp.Range, max.: |
+80°C/+176°F |
+70°C/+158°F |
| Caloric
Load, approx. value: |
0.29
MJ/m |
2.14 MJ/m |
| Copper
Weight: |
32.0 kg/km |
32.0 kg/km |
|
| Applicable Standards: |
PROFInet Draft |
PROFInet Draft |
|
| These copper data
cables, designed especially for heavy-duty
industrial applications are very
well suited for Ethernet applications.
They ensure superiour transmission
properties and can be used even under
most severe conditions. The line
specified here correspond to the
PROFInet type A and because of the
special construction with cross-linked
inner-jacket and PUR outer-jacket
it is suitable for fixed installation
applications inside radiated areas
and with the PVC inner-jacket/PE
outer-jacket it is suitable for areas
with rodent problems. |
|
|
|
|
|
|
