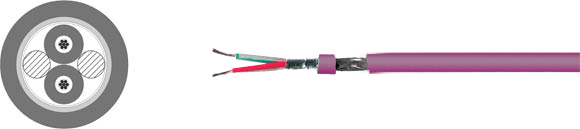

Helukabel Data, Network & BUS Cable: PROFIBUS L2 7-wire
Hi-Tech Controls, Inc, HELUKABEL wires and cables
Helukabel Part
Number: 800648
Electrical
Data
Characteristic
Impedance:
150
Ohm ± 10%
Conductor
Resistance:
86.7 Ohm/km
max.
Insulation
Resistance:
1.00 GOhm
x km min.
Mutual Capacitance:
30.0 nF/km
nom.
Test Voltage:
1.5 kV
Attenuation:
9.6
kHz
<
3.0
dB/km
38.4
kHz
<
5.0
dB/km
4.0
MHz
<
26.0
dB/km
16.0
MHz
<
55.0
dB/km
Technical
Data
Weight:
Approximately
75.0 kg/km
Min. Bending
Radius for Laying:
120.0 mm
Operating
Temperature Range, min.:
-20°C/-4°F
Operating
Temperature Range, max.:
+70°C/+158°F
Caloric Load,
approximate value:
1.20 MJ/m
Copper Weight:
24.0 kg/km
Norms
Applicable Standards:
Profibus
acc. to DIN 19245 T3 and EN 50170
UL Style:
UL Style 2571
Technical
Data
Helukabel
Electrical
Data
Characteristic
Impedance:
150
Ohm ± 10%
Conductor
Resistance:
86.7 Ohm/km
max.
Insulation
Resistance:
1.00 GOhm
x km min.
Mutual Capacitance:
30.0 nF/km
nom.
Test Voltage:
1.5 kV
Attenuation:
9.6
kHz
<
3.0
dB/km
38.4
kHz
<
5.0
dB/km
4.0
MHz
<
26.0
dB/km
16.0
MHz
<
55.0
dB/km
Technical
Data
Weight:
Approximately
75.0 kg/km
Min. Bending
Radius for Laying:
120.0 mm
Operating
Temperature Range, min.:
-20°C/-4°F
Operating
Temperature Range, max.:
+70°C/+158°F
Caloric Load,
approximate value:
1.20 MJ/m
Copper Weight:
24.0 kg/km
Norms
Applicable Standards:
Profibus
acc. to DIN 19245 T3 and EN 50170
UL Style:
UL Style 2571
Approvals
Type/Area
of Application
Mobile
Use
Helukabel
Cable
Construction
1x2x0.64
mm (stranded)
Inner
Conductor Diameter 1:
Copper,
bare (AWG 24/7)
Conductor Insulation:
Foam-Skin-PE
Conductor Colors
1:
red, green
Stranding Element:
2 conductors
+ 2 fillers stranded together
Shielding 1:
Polyester foil
over stranded bundle
Shielding 2:
Polyester foil,
aluminum lined
Total Shielding:
Copper braid,
tinned
Outer Jacket
Material:
PVC
Outer Diameter:
Approx. 7.8 mm ± 0.3
mm
Outer Jacket
Color:
Violet similar
to RAL 4001
Application
This system cable
is used to interconnect L2-BUS components.
This cable is an economical solution
for the cell and field area. For
the information exchange between
different automation systems as well
as for communication with the connected
decentralized field units, serial
field bus systems are used. With
his cord design, the type mentioned
here is suitable for laying in regular
mobile applications and is equipped
with a special PVC jacket.
