Data, Network & BUS Cable: Industrial Ethernet 200S


S-FTP 4-Pair Drag Chain

Sealcon, Inc, European & Domestic cable

Bus Cables, Industrial Ethernet LAN Cables, 200S, Sealcon, , RoHS Approved, RoHS Compliant
Part Number:
81155
Electrical Data
Characteristic Impedance: 100 Ohm ± 15 Ohm at 1 to 100 MHz
Loop Resistance: 156.0 nF/km nom.
Mutual Capacitance: 51.0 nF/km nom.
Typical Values
Frequency (MHz) 10 16 62.5 100
Attenuation (dB/10m) 1.0 1.2 2.6 3.3
Next (dB) 47.0 44.0 35.0 32.0
ACR (dB) 46.0 42.8 32.4 28.7
Technical Data
Weight: Approximately 110.0 kg/km
Min. Bending Radius for Laying: 115.0 mm
Operating Temperature Range, min.: -25°C/-13°F
Operating Temperature Range, max.: +70°C/158°F
Caloric Load, Approximate Value: 2.08 MJ/m
Copper Weight: 54.3 kg/km
Norms
  • Acc. to ISO/IEC 11801
  • Acc. to EN 50173
  • Acc. to EIA/TIA 568-A, Category 5
  • Flame Retardant acc. to IEC 60332-1
  • Smoke Density acc. to IEC 61034
  • Halogen-free acc. to 60754-2
  • Oil-resistant
Technical Data
Electrical Data
Characteristic Impedance: 100 Ohm ± 15 Ohm at 1 to 100 MHz
Loop Resistance: 156.0 nF/km nom.
Mutual Capacitance: 51.0 nF/km nom.
Typical Values
Frequency (MHz) 10 16 62.5 100
Attenuation (dB/10m) 1.0 1.2 2.6 3.3
Next (dB) 47.0 44.0 35.0 32.0
ACR (dB) 46.0 42.8 32.4 28.7
Technical Data
Weight: Approximately 110.0 kg/km
Min. Bending Radius for Laying: 115.0 mm
Operating Temperature Range, min.: -25°C/-13°F
Operating Temperature Range, max.: +70°C/158°F
Caloric Load, Approximate Value: 2.08 MJ/m
Copper Weight: 54.3 kg/km
Norms
  • Acc. to ISO/IEC 11801
  • Acc. to EN 50173
  • Acc. to EIA/TIA 568-A, Category 5
  • Flame Retardant acc. to IEC 60332-1
  • Smoke Density acc. to IEC 61034
  • Halogen-free acc. to 60754-2
  • Oil-resistant

Approvals
RoHS
Type/Area of Application Machine Construction, Drag Chain Applications

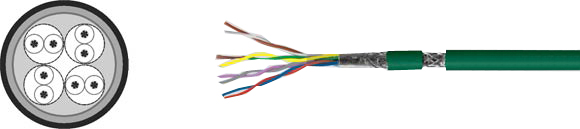

Cable Construction S-FTP 4x2xAWG 24/19 PUR
Inner Conductor Diameter: Copper, bare (AWG 24/19)
Conductor Insulation: PP
Conductor Colors: white, brown, green, yellow, grey, pink, blue, red
Stranding Element: Double Conductor
Shielding 1: -
Shielding 2: -
Shield 1 over Stranding: Polyester foil, aluminum lined
Shield 2 over Stranding: Copper braid
Outer Jacket Material: PUR
Outer Diameter: Approx. 9.5 mm
Outer Jacket Color: Green similar to RAL 6026
Application
®200T industry data cables were designed for the most extreme requirements in the industry (industrial ethernet) and other heavy-duty environments. They are characterized by large performance reserves and outstanding performance, even under the most extreme conditions. In addition, the thought-out mechanical construction even ensures applications in drag chains with high packing density. These lines are manufactured with conventional Sub-D plugs or with various RJ45 plugs.
Properties
  • Not Available
Note
  • Not Available
Cable Accessories
  • Coming Soon!
