Data, Network & BUS Cable:

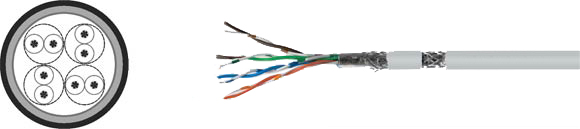

Industrial Ethernet 200IND |
|
 |
| S-FTP ROBUSTFLEX |
|
|
| Type/Area
of Application |
Patch
Cables - Machine Construction |
| Cable
Construction |
S-FTP
4x2xAWG 26/7 PUR |
|
| Inner
Conductor Diameter: |
Copper,
bare (AWG 26/7) |
| Conductor Insulation: |
PO |
| Conductor Colors: |
white-blue,
blue, white-orange, orange, white-green,
green, white-brown, brown |
| Stranding Element: |
Double Conductor |
| Shielding 1: |
Polyester
foil over stranded bundle |
| Shielding 2: |
- |
| Shield 1 over
Stranding: |
Polyester foil,
aluminum lined |
| Shield 2 over
Stranding: |
Copper braid |
| Outer Jacket
Material: |
PUR |
| Outer Diameter: |
5.7 mm |
| Outer Jacket
Color: |
Green similar
RAL 7035 |
|
|
|
| |
|
|
| |
|
| |
|
|
| Characteristic
Impedance: |
100
Ohm ± 15 Ohm at 1 to 100 MHz |
| Mutual
Capacitance: |
47.0 nF/km
nom. |
|
|
| Frequency (MHz) |
10 |
16 |
62.5 |
100 |
200 |
| Attenuation (dB/10m) |
0.8 |
1.1 |
2.4 |
2.9 |
4.3 |
| Next (dB) |
58.0 |
56.0 |
45.0 |
43.0 |
37.0 |
| ACR (dB) |
57.2 |
54.9 |
42.6 |
40.1 |
32.7 |
|
|
|
| Weight: |
Approximately
44.0
kg/km |
| Min. Bending
Radius for Laying: |
46.0 mm |
| Operating
Temperature Range, min.: |
-40°C/-40°C |
| Operating
Temperature Range, max.: |
+80°C/-176°C |
| Caloric
Load, Approximate Value: |
0.54 MJ/m |
| Copper
Weight: |
24.0 kg/km |
|
|
- Acc. to
ISO/IEC 11801
- Acc. to EN 50173
- Acc. to
EIA/TIA 568-A,
Category 5e
- Flame Retardant acc. to IEC
60332-1
- Smoke Density acc. to IEC 61034
- Halogen-free acc. to 60754-2
- Oil-resistant
|
|
| HELUKAT®200
industry data cables were designed
for high requirements in the industry
(industrial ethernet) and other heavy-duty
environments. They are characterized
by large performance reserves and
outstanding performance. Mechanically
they are also perfectly suited for
rough industrial environments due
to their halogen-free PUR outer jacket.
These lines are manufactured with
all common RJ45 plugs (industry and
office version), and also with some
Sub-D and M12 plugs. |
|
|
|
|
|
|
