 Bus Cables

Data, Network

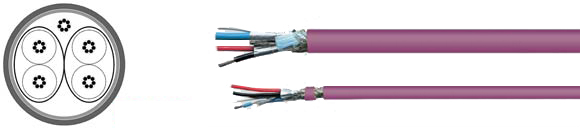

& BUS Cable: DeviceNet™ FRNC



Sealcon, Inc, European & Domestic cable

Bus Cables, DeviceNet™ FRNC, Sealcon, , RoHS Approved, RoHS Compliant

Part Number:
800681
Part Number:
800682
Electrical Data
Characteristic Impedance: 120 Ohm ± 10% 120 Ohm ± 10%
Conductor Resistance: 22.6 Ohm/km max. 90.0 Ohm/km max.
Insulation Resistance: 0.20 GOhm x km min. 0.20 GOhm x km min.
Mutual Capacitance: 39.0 nF/km nom. 39.8 nF/km nom.
Test Voltage: 2.0 kV 2.0 kV
Attenuation:
125 kHz < 0.42 dB/100m
500 kHz < 0.81 dB/100m
125 kHz < 0.95 dB/100m
500 kHz < 1.64 dB/100m
Technical Data
Weight: approximately 195.0 kg/km approximately 70.0 kg/km
Min. Bending Radius (Laying): 190.0 mm 110.0 mm
Operating Temp.Range, min.: -25°C/-13°F -25°C/-13°F
Operating Temp.Range, max.: +80°C/+176°F +80°C/+176°F
Caloric Load, approx. value: 2.73 MJ/m 0.82 MJ/m
Copper Value: 85.0 kg/km 34.0 kg/km
Norms
Applicable Standards: ODVA DeviceNet ODVA DeviceNet
UL Styles: CMG 750C PLTC FT4 CMG 750C PLTC FT4
CSA Standard: CEC: CMG FT4 CEC: CMG FT4
Technical Data
Electrical Data
Characteristic Impedance: 120 Ohm ± 10% 120 Ohm ± 10%
Conductor Resistance: 22.6 Ohm/km max. 90.0 Ohm/km max.
Insulation Resistance: 0.20 GOhm x km min. 0.20 GOhm x km min.
Mutual Capacitance: 39.0 nF/km nom. 39.8 nF/km nom.
Test Voltage: 2.0 kV 2.0 kV
Attenuation:
125 kHz < 0.42 dB/100m
500 kHz < 0.81 dB/100m
125 kHz < 0.95 dB/100m
500 kHz < 1.64 dB/100m
Technical Data
Weight: approximately 195.0 kg/km approximately 70.0 kg/km
Min. Bending Radius (Laying): 190.0 mm 110.0 mm
Operating Temp.Range, min.: -25°C/-13°F -25°C/-13°F
Operating Temp.Range, max.: +80°C/+176°F +80°C/+176°F
Caloric Load, approx. value: 2.73 MJ/m 0.82 MJ/m
Copper Value: 85.0 kg/km 34.0 kg/km
Norms
Applicable Standards: ODVA DeviceNet ODVA DeviceNet
UL Styles: CMG 750C PLTC FT4 CMG 750C PLTC FT4
CSA Standard: CEC: CMG FT4 CEC: CMG FT4

Approvals
RoHSFRNC
Type/Area of Application Fixed Installation, Indoor Fixed Installation, Indoor
Cable Construction 1x2xAWG18 +1x2xAWG15 1x2xAWG24 +1x2xAWG22
Inner Conductor Diameter 1: Copper, tinned (AWG 18/19) Copper, tinned (AWG 24/19)
Inner Conductor Diameter 2: Copper, tinned (AWG 15/19) Copper, bare (AWG 22/19)
Conductor Insulation 1: Cell PE Cell PE
Conductor Insulation 2: Cell PE Cell PE
Conductor Colors 1: light blue, white light blue, white
Conductor Colors 2: red, black red, black
Stranding Element: Double conductor Double conductor
Shielding 1: - -
Shielding 2: Polyester foil, aluminum-lined Polyester foil, aluminum-lined
Total Shielding: Copper braid, tinned Copper braid, tinned
Drain Wire: yes yes
Outer Jacket Material: FRNC FRNC
Outer Cable Diameter: Approx. 12.20 mm ± 0.3 mm Approx. 6.9 mm ± 0.3 mm
Outer Jacket Color: Violet similar RAL 4001 Violet similar RAL 4001
Application
DeviceNet™ is a bus system developed by Allen Bradley (Rockwell Automation). These cables are used to interconnect various industrial devices, such as SPS controls or limit switches. The special characteristic of this bus system is that a data pair and a power supply pair are integrated in one cable. These cables with FRNC jacket are designed for fixed installation.
Properties
  • Not Available
Note
  • Not Available
Cable Accessories
  • Coming Soon!
