Helukabel Bus Cables

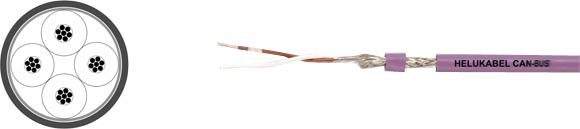

Helukabel Data, Network & BUS Cable: CAN Bus



Hi-Tech Controls, Inc, HELUKABEL wires and cables

Bus Cables, CAN Bus, Hi-Tech Controls, Helukabel, RoHS Approved, RoHS Compliant

Helukabel Part Number:
800571
Helukabel Part Number:
800685
Electrical Data
Characteristic Impedance: 120 Ohm ± 10% 120 Ohm ± 10%
Conductor Resistance: 37.0 Ohm/km max. 37.0 Ohm/km max.
Insulation Resistance: 1.00 GOhm x km min. 1.00 GOhm x km min.
Loop Resistance: 74 Ohm/km max. 74 Ohm/km max.
Mutual Capacitance: 50.0 nF/km nom. 65.0 nF/km nom.
Test Voltage: 1.5 kV 1.5 kV
Technical Data
Weight: Approximately 69.0 kg/km Approximately 100.0 kg/km
Min. Bending Radius (Laying): 105.0 mm 128.0 mm
Operating Temp.Range, min.: -40°C/-40°F -40°C/-40°F
Operating Temp.Range, max.: +70°C/158°F +70°C/158°F
Caloric Load, approx. value: 1.09 MJ/m 1.64 MJ/m
Copper Value: 30.0 kg/km 45.0 kg/km
Norms
Applicable Standards: Profibus acc. to DIN 19245 T3 and EN 50170 Profibus acc. to DIN 19245 T3 and EN 50170
UL Style: UL Style 2571 UL Style 2571
Technical Data Helukabel
Electrical Data
Characteristic Impedance: 120 Ohm ± 10% 120 Ohm ± 10%
Conductor Resistance: 37.0 Ohm/km max. 37.0 Ohm/km max.
Insulation Resistance: 1.00 GOhm x km min. 1.00 GOhm x km min.
Loop Resistance: 74 Ohm/km max. 74 Ohm/km max.
Mutual Capacitance: 50.0 nF/km nom. 65.0 nF/km nom.
Test Voltage: 1.5 kV 1.5 kV
Technical Data
Weight: Approximately 69.0 kg/km Approximately 100.0 kg/km
Min. Bending Radius (Laying): 105.0 mm 128.0 mm
Operating Temp.Range, min.: -40°C/-40°F -40°C/-40°F
Operating Temp.Range, max.: +70°C/158°F +70°C/158°F
Caloric Load, approx. value: 1.09 MJ/m 1.64 MJ/m
Copper Value: 30.0 kg/km 45.0 kg/km
Norms
Applicable Standards: Profibus acc. to DIN 19245 T3 and EN 50170 Profibus acc. to DIN 19245 T3 and EN 50170
UL Style: UL Style 2571 UL Style 2571
Approvals
RoHS
Type/Area of Application Fixed Installation, Indoor Fixed Installation, Indoor
Cable Construction 1x2x0.50 mm2 (stranded) 4x1x0.50 mm2 (stranded)
Inner Conductor Diameter 1: Copper, bare (AWG 20/7) Copper, bare (AWG 20/7)
Conductor Insulation: Foam-skin-PE Foam-skin-PE
Conductor Colors: white, brown white, brown, green-yellow
Stranding Element: Double conductor Star quad
Shielding 1: Polyester foil over stranded bundle Polyester foil over stranded bundle
Shielding 2: - -
Total Shielding: Copper braid, tinned Copper braid, tinned
Outer Jacket Material: PVC PVC
Outer Diameter: Approx. 7.0 mm ± 0.2 mm Approx. 8.5 mm ± 0.2 mm
Outer Jacket Color: Violet similar to RAL 4001 Violet similar to RAL 4001
Application
The CAN bus series (control area network) is a variable field bus system. In the area of automation technology, complex controllers and control units are networked. Industries, such as the textile or construction machine industry and the medical technology, use this series. The above mentioned types are suitable for fixed laying in indoor applications. This is also a very economical solution of a BUS system.
Properties
  • Not Available
Note
  • Not Available
Cable Accessories
  • Coming Soon!
