 Bus Cables

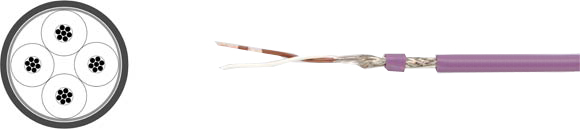

Data, Network & BUS Cable: CAN Bus



Sealcon, Inc, European & Domestic cable

Bus Cables, CAN Bus, Sealcon, , RoHS Approved, RoHS Compliant


Part Number:
81286
Part Number:
81287
Electrical Data
Characteristic Impedance: 120 Ohm ± 10% 120 Ohm ± 10%
Conductor Resistance: 87.0 Ohm/km max. 87.0 Ohm/km max.
Insulation Resistance: 1.00 GOhm x km min. 1.00 GOhm x km min.
Loop Resistance: 174 Ohm/km max. 174 Ohm/km max.
Mutual Capacitance: 58.0 nF/km nom. 58.0 nF/km nom.
Nominal Voltage: 30 V 30 V
Test Voltage: 1.5 kV 1.5 kV
Technical Data
Weight: Approximately 41.0 kg/km Approximately 60.0 kg/km
Min. Bending Radius (Laying): 81.0 mm 107.0 mm
Operating Temp.Range, min.: -40°C/-40°F -40°C/-40°F
Operating Temp.Range, max.: +70°C/158°F +70°C/158°F
Caloric Load, approx. value: 0.574 MJ/m 1.234 MJ/m
Copper Value: 17.0 kg/km 21.0 kg/km
Norms
Applicable Standards: Profibus acc. to DIN 19245 T3 and EN 50170 Profibus acc. to DIN 19245 T3 and EN 50170
UL Style: UL Style 2571 UL Style 2571
Technical Data
Electrical Data
Characteristic Impedance: 120 Ohm ± 10% 120 Ohm ± 10%
Conductor Resistance: 87.0 Ohm/km max. 87.0 Ohm/km max.
Insulation Resistance: 1.00 GOhm x km min. 1.00 GOhm x km min.
Loop Resistance: 174 Ohm/km max. 174 Ohm/km max.
Mutual Capacitance: 58.0 nF/km nom. 58.0 nF/km nom.
Nominal Voltage: 30 V 30 V
Test Voltage: 1.5 kV 1.5 kV
Technical Data
Weight: Approximately 41.0 kg/km Approximately 60.0 kg/km
Min. Bending Radius (Laying): 81.0 mm 107.0 mm
Operating Temp.Range, min.: -40°C/-40°F -40°C/-40°F
Operating Temp.Range, max.: +70°C/158°F +70°C/158°F
Caloric Load, approx. value: 0.574 MJ/m 1.234 MJ/m
Copper Value: 17.0 kg/km 21.0 kg/km
Norms
Applicable Standards: Profibus acc. to DIN 19245 T3 and EN 50170 Profibus acc. to DIN 19245 T3 and EN 50170
UL Style: UL Style 2571 UL Style 2571

Approvals
RoHS
Type/Area of Application Fixed Installation, Indoor Fixed Installation, Indoor
Cable Construction 1x2x0.22 mm2 (stranded) 4x1x0.22 mm2 (stranded)
Inner Conductor Diameter 1: Copper, bare (AWG 24/7) Copper, bare (AWG 24/7)
Conductor Insulation: Cell PE Cell PE
Conductor Colors: white, brown white, brown, green-yellow
Stranding Element: Double conductor Star quad
Shielding 1: Polyester foil over stranded bundle Polyester foil over stranded bundle
Shielding 2: - -
Total Shielding: Copper braid, tinned Copper braid, tinned
Outer Jacket Material: PVC PVC
Outer Diameter: Approx. 5.4 mm ± 0.2 mm Approx. 6.9 mm ± 0.2 mm
Outer Jacket Color: Violet similar to RAL 4001 Violet similar to RAL 4001
Application
The CAN bus series (control area network) is a variable field bus system. In the area of automation technology, complex controllers and control units are networked. Industries, such as the textile or construction machine industry and the medical technology, use this series. The above mentioned types are suitable for fixed laying in indoor applications. This is also a very economical solution of a BUS system.
Properties
  • Not Available
Note
  • Not Available
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
