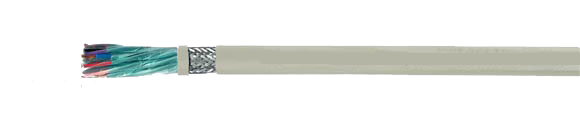

Helukabel Data & Computer Cable: EDV-PiMF-CY

PE-Insulated, Low Capacitance, EMI Preferred Type

Hi-Tech Controls, Inc, HELUKABEL wires and cables

Special data transmission cables, EDV-PiMF-CY PE-insulated, low capacitance, EMI preferred type, Hi-Tech Controls, Helukabel
AWG Selection
20
20
18
18
17
17
16
16
Helukabel Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
43553 EDV-PIMF-CY 2X2X0.5  9.5 50.0 101.0 20
43554 EDV-PIMF-CY 3X2X0.5 10.0 66.0 120.0 20
43524 EDV-PIMF-CY 4X2X0.5 11.0 108.0 196.0 20
43555 EDV-PIMF-CY 5X2X0.5 11.5 120.0 201.0 20
43525 EDV-PIMF-CY 6X2X0.5 13.2 148.0 260.0 20
43526 EDV-PIMF-CY 8X2X0.5 13.9 180.0 310.0 20
43527 EDV-PIMF-CY 10X2X0.5 15.5 236.0 398.0 20
43528 EDV-PIMF-CY 16X2X0.5 21.2 338.0 515.0 20
43529 EDV-PIMF-CY 20X2X0.5 22.9 394.0 688.0 20
43530 EDV-PIMF-CY 30X2X0.5 27.9 577.0 980.0 20
43531 EDV-PIMF-CY 40X2X0.5 38.3 684.0 1390.0 20
43532 EDV-PIMF-CY 50X2X0.5 43.2 834.0 1860.0 20
43556 EDV-PIMF-CY 2X2X0.75  10.6 61.0 117.0 18
43557 EDV-PIMF-CY 3X2X0.75 11.7 97.0 142.0 18
43533 EDV-PIMF-CY 4X2X0.75 13.5 141.0 240.0 18
43558 EDV-PIMF-CY 5X2X0.75 13.6 163.0 304.0 18
43534 EDV-PIMF-CY 6X2X0.75 15.5 198.0 352.0 18
43535 EDV-PIMF-CY 8X2X0.75 16.4 246.0 415.0 18
43536 EDV-PIMF-CY 10X2X0.75 19.8 305.0 505.0 18
43537 EDV-PIMF-CY 16X2X0.75 22.7 446.0 732.0 18
43538 EDV-PIMF-CY 20X2X0.75 23.9 530.0 860.0 18
43539 EDV-PIMF-CY 30X2X0.75 30.9 765.0 1210.0 18
43559 EDV-PIMF-CY 2X2X1  12.0 72.0 130.0 17
43560 EDV-PIMF-CY 3X2X1 12.3 104.0 161.0 17
43540 EDV-PIMF-CY 4X2X1 14.4 186.0 360.0 17
43561 EDV-PIMF-CY 5X2X1 17.4 231.0 412.0 17
43541 EDV-PIMF-CY 6X2X1 17.1 260.0 472.0 17
43542 EDV-PIMF-CY 8X2X1 19.2 322.0 540.0 17
43543 EDV-PIMF-CY 10X2X1 19.8 382.0 670.0 17
43544 EDV-PIMF-CY 16X2X1 23.5 578.0 982.0 17
43545 EDV-PIMF-CY 20X2X1 29.4 710.0 1240.0 17
43546 EDV-PIMF-CY 30X2X1 35.4 1050.0 1720.0 17
43562 EDV-PIMF-CY 2X2X1.5  14.0 81.0 164.0 16
43563 EDV-PIMF-CY 3X2X1.5 14.7 141.0 197.0 16
43547 EDV-PIMF-CY 4X2X1.5 16.1 261.0 480.0 16
43564 EDV-PIMF-CY 5X2X1.5 18.4 284.0 516.0 16
43548 EDV-PIMF-CY 6X2X1.5 19.5 355.0 590.0 16
43549 EDV-PIMF-CY 8X2X1.5 20.7 448.0 696.0 16
43550 EDV-PIMF-CY 10X2X1.5 23.9 551.0 874.0 16
43551 EDV-PIMF-CY 16X2X1.5 29.7 838.0 1340.0 16
43552 EDV-PIMF-CY 20X2X1.5 31.7 1030.0 1620.0 16
Technical Data Helukabel
  • Special PE data cable for computer application
  • Temperature Range
    Flexing
    -5°C to +80°C (+23°F to +176°F)
    Fixed Installation
    -20°C to +80°C (-4°F to +176°F)
  • Nominal Voltage max. 300 V
    (Not for purposes of high current and power installation)
  • Test Voltage
    Conductor/conductor 2000 V
    Conductor/shield 1000 V
  • Insulation Resistance
    Approx. 5 GOhm x km
  • Mutual Capacitance
    Conductor/conductor approx. 75pF/m
  • Inductance approx. 0.4 mH/km
  • Cross-Talk Attenuation
    Min. 60 dB at 100 kHz
  • Impedance (approx. value)
    At 1 kHz approx. 360 Ohm
    At 10 kHz approx. 125 Ohm
    At 100 kHz approx. 87 Ohm
    At 1000 kHz approx. 70 Ohm
  • Line Attenuation (approx. value)
    At 1 kHz approx. 1.1 dB
    At 10 kHz approx. 2.7 dB
    At 100 kHz approx. 6.8 dB
    At 1000 kHz approx. 35 dB
  • Minimum Bending Radius
    Flexing 10x cable Ø
    Fixed installation 6x cable Ø
  • Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)
Approvals
RoHSCE CE
Cable Construction
  • Bare copper, fine wire conductors, according to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • PE conductor insulation
  • Color code as per DIN 47100
  • PiMF: (pair in metal foil)
    conductors twisted in pairs; foil wrapped, plastic coated aluminum foil and copper drain-wire tinned, 100% coverage
  • PiMFs are stranded in layer
  • Conductor wrapping with plastic tapes
  • Overall copper shielded braiding, 85% coverage
  • Outer jacket, TM2 in adapted to VDE 0281 part 1
  • Color: Gray (RAL 7032)
Application
Absolute disturbance-free data transfer both for installed terminals in all areas of medicine and data technology.Also suitable for use in machine tool and steel producing industries, traffic signal systems, assembly lines and food processing.
EMI = Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of the copper braiding on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • PVC outer jacket self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
