Control Cable | SUPERTRONIC-310-C-PVC Special Cable for Track Cable/Drag Chains

AWG Selection
	26		24		22

Part-No.	Description & No. Conductors x cross-sec. mm²	Outer Diameter mm	Copper weight kg/km	Weight ca. kg/km	AWG
49920	SUPERTRONIC-310-C-PVC 2X0.14	4.3	11.3	33.0	26
49921	SUPERTRONIC-310-C-PVC 3X0.14	4.5	14.2	36.0	26
49922	SUPERTRONIC-310-C-PVC 4X0.14	4.7	15.5	41.0	26
49923	SUPERTRONIC-310-C-PVC 5X0.14	5.0	18.4	46.0	26
49924	SUPERTRONIC-310-C-PVC 7X0.14	5.7	27.9	70.0	26
49925	SUPERTRONIC-310-C-PVC 10X0.14	6.8	39.1	88.0	26
49926	SUPERTRONIC-310-C-PVC 12X0.14	7.4	42.2	97.0	26
49927	SUPERTRONIC-310-C-PVC 14X0.14	7.4	45.4	105.0	26
49928	SUPERTRONIC-310-C-PVC 18X0.14	7.7	54.2	116.0	26
49929	SUPERTRONIC-310-C-PVC 24X0.14	8.7	66.5	150.0	26
49930	SUPERTRONIC-310-C-PVC 25X0.14	9.1	68.5	157.0	26
49931	SUPERTRONIC-310-C-PVC 2X0.25	4.7	14.8	39.0	24
49932	SUPERTRONIC-310-C-PVC 3X0.25	4.9	18.9	45.0	24
49933	SUPERTRONIC-310-C-PVC 4X0.25	5.2	21.4	52.0	24
49934	SUPERTRONIC-310-C-PVC 5X0.25	5.6	31.2	70.0	24
49935	SUPERTRONIC-310-C-PVC 7X0.25	6.4	39.8	80.0	24
49936	SUPERTRONIC-310-C-PVC 10X0.25	7.6	53.9	114.0	24
49937	SUPERTRONIC-310-C-PVC 12X0.25	8.3	59.2	123.0	24
49938	SUPERTRONIC-310-C-PVC 14X0.25	8.3	64.3	138.0	24
49939	SUPERTRONIC-310-C-PVC 18X0.25	8.9	78.6	165.0	24
49940	SUPERTRONIC-310-C-PVC 24X0.25	10.1	89.8	200.0	24
49941	SUPERTRONIC-310-C-PVC 25X0.25	10.4	101.2	204.0	24
49942	SUPERTRONIC-310-C-PVC 2X0.34	4.9	18.2	44.0	22
49943	SUPERTRONIC-310-C-PVC 3X0.34	5.1	28.8	60.0	22
49944	SUPERTRONIC-310-C-PVC 4X0.34	5.5	35.8	76.0	22
49945	SUPERTRONIC-310-C-PVC 5X0.34	5.8	39.2	80.0	22
49946	SUPERTRONIC-310-C-PVC 7X0.34	6.8	52.8	104.0	22
49947	SUPERTRONIC-310-C-PVC 10X0.34	8.0	67.5	150.0	22
49948	SUPERTRONIC-310-C-PVC 12X0.34	8.1	76.5	160.0	22
49949	SUPERTRONIC-310-C-PVC 14X0.34	9.0	85.9	180.0	22
49950	SUPERTRONIC-310-C-PVC 18X0.34	9.2	99.9	211.0	22
49951	SUPERTRONIC-310-C-PVC 24X0.34	10.7	147.0	290.0	22
49952	SUPERTRONIC-310-C-PVC 25X0.34	11.2	155.0	304.0	22

Technical Data

Special PVC drag chain cable approved to UL-Style 2464
Temperature Range
Flexing
-5�C to +80�C (+23�F to +176�F)
Fixed Installation
-40�C to +80�C (-40�F to +176�F)
Nominal Voltage 300 V
Test Voltage
Conductor/conductor 1500 V
Conductor/shielding 1000 V

Breakdown Voltage
Min. 3000 V
Minimum Bending Radius
Flexing 7.5x cable �
Fixed Installation 4x cable �
Insulation Resistance
Min. 20 MOhm x km
Radiation Resistance
Up to 80x10⁶ cJ/kg (up to 80 Mrad)
Coupling Resistance
Max. 250 Ohm/km

Approvals

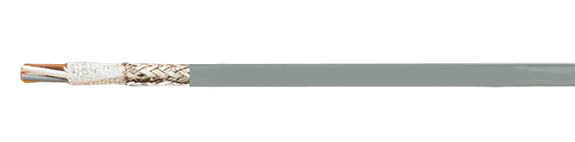

Cable Construction

Bare copper conductor, fine wire with short lay lengths
PVC conductor insulation, class 43 acc. to UL Std. 1581
Color coded to DIN 47100
Conductors stranded in layers with optimal lay length
Conductor wrapping from fleece between the layers of stranding
Conductor wrapping over the outer layer
Braided shield of tinned copper wires, coverage approx. 85%
Conductor wrapping with fleece
PVC outer jacket, oil resistant, TM5 acc. to DIN VDE 0281 Part 1 or class 43 acc. to UL Std. 1581
Jacket color: Gray (RAL 7001)

Application

A highly-flexible PVC control cable suitable for frequent and fast lifting and bending stresses in machines and tool building, robot systems and on constantly moving machine components. Long service lives guarantee reliable function and good cost efficiency.
For applications which go beyond standard solutions (for example for composting appliances or high shelf conveyors with extremely high processing speeds etc.) we recommend for our specially developed inquiry sheet for energy guiding systems. Before installation in cable trays, please read the instructions. For further technical details, see selection table for drag chain cables.
EMI = Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of copper braiding on both ends.
= The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.

Properties

Low adhesion
PVC self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers

Note

Please observe applicable installation regulations for use in energy supply chains.
