Special PVC control cable with
oil resistant outer jacket to
DIN VDE 0281 part 13, HD 21.13
S1 and to UL Style 2587
Temperature Range Flexing
-5°C to +70°C
(+23°F to +158°F) HAR
-5°C to +90°C
(+23°F to +194°F) UL+CSA
Fixed Installation
-40°C
to +70°C
(-40°F to +158°F) HAR
-40°C to +90°C
(-40°F to +194°F) UL+CSA
Nominal
Voltage U0/U
300/500 V (HAR)
U 600 V (UL+CSA)
Radiation Resistance Up to
80x106 cJ/kg
(up to 80 Mrad)
Coupling Resistance Max.
250 Ohm/km
Approvals

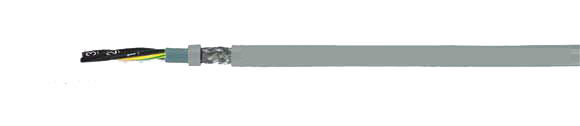

Cable
Construction
Bare copper,
fine wire conductors to DIN VDE 0295
cl. 5, BS 6360 cl. 5 and IEC 60228
cl. 5
Special PVC conductor
insulation TI1, to DIN VDE 0281 part
1, HD 21.1S2 and class 43 to UL Std.
1581
Black conductors with
white continuous numbering
Green-yellow
grounding in the outer layer
PVC-based inner
jacket
Tinned copper
braiding shielding, 85% coverage
Special PVC outer
jacket TM5, oil resistant to DIN VDE
0281 part 1, HD 21.1 S2 and class 43
to UL Std. 1581
Color: Gray (RAL 7001)
Application
UL-CSA-HAR approved
cables are offered to many companies
exporting anywhere in the world,
primarily designed for exporters,
used in machine tools, control systems,
assembly lines and other industrial
equipment. These cable are used for
flexible use for medium mechanical
stresses with free movement without
tensile stress or forced movements
in dry, moist and wet rooms, but
not for open air. EMI =
Electromagnetic Interference
To optimize the EMI features we recommend
a large round contact of copper braiding
on both ends. =
The product is conformed
with the EC Low-Voltage
Directive 2006/95/EG.
Properties
Oil resistant as per HD/EN 60811-2-1, UL 1581 part 50.182
PVC self-extinguishing and flame retardant
according to DIN VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent
DIN VDE 0472 part 804 test method B)
UL-VW 1
The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
G = with green-yellow
grounding
x = without green-yellow grounding (OZ)
The following amendments
in the cable designation result from
the new DIN VDE 0281 part 13 / harmonized
in accordance with HD 21.13S1: NYSLYÖ-J
(new: H05VV5-F) and NYSLYCYÖ-J (new:
H05VVC4V5-K). SEV-approval is no longer
applicable as a result of the harmonization.
