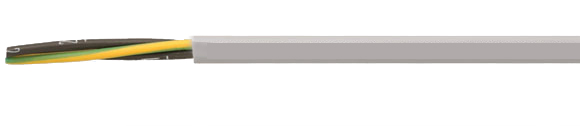

Control Cable: NANOFLEX® HC 500

Cut Resistant, Meter Marking

Sealcon, Inc, European & Domestic cable

Nanoflex HC 500, Nanoflex, Hygenic Cable, 27031, 27032, 27033, 27034, 27035, 27036, 27037, 27038, 27039, 27040, 27041, 27042, 27043, 27044, 27045, 27046, 27047, 27048, 27049, 27050, 27051, 27052, 27053, 27054, 27055, 27056, 27057, 27058, 27059, 27060, 27061, 27062, 27063, 27064, 27065, 27066, 27067, 27068, 27069, 27070, 27071, 27072, 27073, 27074, 27075, 27076, 27077, 27078, 27079, 27080, 27081, 27082, 27083, 27084, 27085, 27086, 27087, 27088, 27089, Sealcon, Hi Tech Controls,

Part-No.
Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
27031 NANOFLEX® HC 500 2X0.5 4.8 10.0 45.0
27032 NANOFLEX® HC 500 3G0.5 5.1 14.0 55.0
27033 NANOFLEX® HC 500 3X0.5 5.1 14.0 55.0
27034 NANOFLEX® HC 500 4G0.5 5.7 19.0 65.0
27035 NANOFLEX® HC 500 4X0.5 5.7 19.0 65.0
27036 NANOFLEX® HC 500 5G0.5 7.2 24.0 75.0
27037 NANOFLEX® HC 500 5X0.5 7.2 24.0 75.0
27038 NANOFLEX® HC 500 7G0.5 7.2 34.0 90.0
27039 NANOFLEX® HC 500 7X0.5 7.2 34.0 90.0
27040 NANOFLEX® HC 500 10G0.5 8.8 48.0 120.0
27041 NANOFLEX® HC 500 12G0.5 9.1 58.0 135.0
27042 NANOFLEX® HC 500 18G0.5 10.7 86.0 205.0
27043 NANOFLEX® HC 500 25G0.5 13.2 120.0 270.0
27044 NANOFLEX® HC 500 2X0.75 5.4 14.0 44.0
27045 NANOFLEX® HC 500 3G0.75 5.7 22.0 53.0
27046 NANOFLEX® HC 500 3X0.75 5.7 22.0 53.0
27047 NANOFLEX® HC 500 4G0.75 6.2 29.0 64.0
27048 NANOFLEX® HC 500 4X0.75 6.2 29.0 64.0
27049 NANOFLEX® HC 500 5G0.75 6.8 36.0 76.0
27050 NANOFLEX® HC 500 5X0.75 6.8 36.0 76.0
27051 NANOFLEX® HC 500 7G0.75 8.1 50.0 96.0
27052 NANOFLEX® HC 500 7X0.75 8.1 50.0 96.0
27053 NANOFLEX® HC 500 10G0.75 9.6 72.0 140.0
27054 NANOFLEX® HC 500 12G0.75 9.6 86.0 170.0
27055 NANOFLEX® HC 500 18G0.75 11.9 130.0 260.0
27056 NANOFLEX® HC 500 25G0.75 14.5 180.0 282.0
27057 NANOFLEX® HC 500 2X1 5.7 19.0 53.0
27058 NANOFLEX® HC 500 3G1 6.0 29.0 63.0
27059 NANOFLEX® HC 500 3X1 6.0 29.0 63.0
27060 NANOFLEX® HC 500 4G1 6.6 38.0 75.0
27061 NANOFLEX® HC 500 4X1 6.6 38.0 75.0
27062 NANOFLEX® HC 500 5G1 7.1 48.0 89.0
27063 NANOFLEX® HC 500 5X1 7.1 48.0 89.0
27064 NANOFLEX® HC 500 7G1 8.6 67.0 115.0
27065 NANOFLEX® HC 500 7X1 8.6 67.0 115.0
27066 NANOFLEX® HC 500 10G1 10.2 96.0 166.0
27067 NANOFLEX® HC 500 12G1 10.7 115.0 201.0
27068 NANOFLEX® HC 500 18G1 12.9 173.0 289.0
27069 NANOFLEX® HC 500 25G1 14.9 240.0 380.0
27070 NANOFLEX® HC 500 2X1.5 6.2 29.0 68.0
27071 NANOFLEX® HC 500 3G1.5 6.6 43.0 87.0
27072 NANOFLEX® HC 500 3X1.5 6.6 43.0 87.0
27073 NANOFLEX® HC 500 4G1.5 7.2 58.0 106.0
27074 NANOFLEX® HC 500 4X1.5 7.2 58.0 106.0
27075 NANOFLEX® HC 500 5G1.5 8.2 72.0 131.0
27076 NANOFLEX® HC 500 5X1.5 8.2 72.0 131.0
27077 NANOFLEX® HC 500 7G1.5 9.8 101.0 173.0
27078 NANOFLEX® HC 500 7X1.5 9.8 101.0 173.0
27079 NANOFLEX® HC 500 12G1.5 12.0 173.0 293.0
27080 NANOFLEX® HC 500 18G1.5 14.5 259.0 454.0
27081 NANOFLEX® HC 500 25G1.5 17.8 360.0 641.0
27082 NANOFLEX® HC 500 2X2.5 7.8 48.0 110.0
27083 NANOFLEX® HC 500 3G2.5 8.3 72.0 146.0
27084 NANOFLEX® HC 500 4G2.5 9.2 96.0 183.0
27085 NANOFLEX® HC 500 5G2.5 10.1 120.0 222.0
27086 NANOFLEX® HC 500 7G2.5 12.3 168.0 293.0
27087 NANOFLEX® HC 500 12G2.5 15.3 288.0 512.0
27088 NANOFLEX® HC 500 4G4 11.0 154.0 291.0
27089 NANOFLEX® HC 500 5G5 12.7 192.0 355.0
Technical Data
  • Special polyurethane jacketed cable according to DIN VDE 0245, 0281
  • Temperature Range
    Flexing
    -5°C to +80°C (+23°F to +176°F)
    Fixed Installation
    -40°C to +80°C (-40°F to +176°F)
  • Nominal Voltage U0/U 300/500 V
  • Test Voltage 4000 V
  • Breakdown Voltage min. 8000 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Minimum Bending Radius
    Flexing 7.5x cable Ø
    Fixed Installation 4x cable Ø
  • Radiation Resistance
    Up to 100x106 cJ/kg (up to 100 Mrad)
Approvals
RoHSCE RoHS
Cable Construction
  • Bare copper, fine wire stranded according to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • Special PVC conductor insulation TI2, according to DIN VDE 0281 part 1
  • Black conductors with sequential white numbering according to DIN VDE 0293
  • Green-yellow grounding in the outer layer (3 conductors and above)
  • Conductors stranded in layers with optimal lay-length
  • Special full-polyurethane outer jacket TMPU, to DIN VDE 50363-10-2
  • Jacket color: Light Gray (RAL 7035)
  • With meter marking
Application

Special PUR cable for the food and beverage industry. Outer jacket with antimicrobial properties increases process reliability in all applications in which food and beverages are processed, unpacked and unsealed, e.g. processing of dairy products, meat, fish, production of convenience foods, brewery and beverage industry.
CE Approval = The product is conformed with the EG Low-Voltage Directive 2006/95/EG

Properties
  • Resistant to UV-Radiation, oxygen, ozone, hydrolysis and microbes
  • Self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (conforms to DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are free of silicone, cadmium and substances that impair paint wetting
  • Good cleaning properties
  • Resistant to all standard detergents
Note
  • G = with green-yellow grounding
    x = without green-yellow grounding (OZ)
  • Shielded type: NANOFLEX® HC 500-C
  • Hygenic Cable
Cable Accessories
  • Coming Soon!
