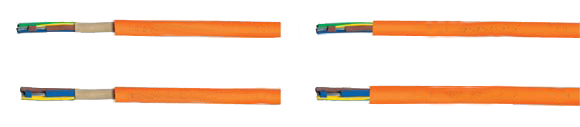

Helukabel Control Cable: H05 BQ-F / H07 BQ-F (NGMH11YÖ)

EPR-Insulated Power Cables with PUR Jacket

Hi-Tech Controls, Inc, HELUKABEL wires and cables

Hi-Tech Controls, Helukabel, HELUKABEL H05BQ-F and H07BQ-F* (NGMH11Yö), EPR-Insulated Power Cables with PUR Jacket, HAR, VDE, Color Coded, PUR Cable, Control Cable
Helukabel
Part-No.
Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
22050 HO5 BQ-F 2 X 0.75, orange 5.7 - 7.4 14.4 52.0 18
22051 HO5 BQ-F 3 G 0.75, orange 6.2 - 8.1 21.6 63.0 18
22052 HO5 BQ-F 4 G 0.75, orange 6.8 - 8.8 29.0 80.0 18
22053 HO5 BQ-F 5 G 0.75, orange 7.6 - 9.9 36.0 96.0 18
22054 HO5 BQ-F 2 X 1, orange 6.1 - 8.0 19.2 59.0 17
22055 HO5 BQ-F 3 G 1, orange 6.5 - 8.5 29.0 71.0 17
22056 HO5 BQ-F 4 G 1, orange 7.1 - 9.3 38.4 89.0 17
22057 HO5 BQ-F 5 G 1, orange 8.0 - 10.3 48.0 112.0 17
22058 HO7 BQ-F 2 X 1.5, orange 7.6 - 9.8 29.0 92.0 16
22059 HO7 BQ-F 3 G 1.5, orange 8.0 - 10.4 43.0 109.0 16
22060 HO7 BQ-F 4 G 1.5, orange 9.0 - 11.6 58.0 145.0 16
22061 HO7 BQ-F 5 G 1.5, orange 9.8 - 12.7 72.0 169.0 16
22062 HO7 BQ-F 7 G 1.5, orange 12.5 - 16.3 101.0 230.0 16
22063 HO7 BQ-F 12 G 1.5, orange 16.5 - 21.5 173.0 398.0 16
22064 HO7 BQ-F 2 X 2.5, orange 9.0 - 11.6 48.0 121.0 14
22065 HO7 BQ-F 3 G 2.5, orange 9.6 - 12.4 72.0 164.0 14
22066 HO7 BQ-F 4 G 2.5, orange 10.7 - 13.8 96.0 207.0 14
22067 HO7 BQ-F 5 G 2.5, orange 11.9 - 15.3 120.0 262.0 14
22072 HO7 BQ-F 2 X 4, orange 10.6 - 13.7 77.0 194.0 12
22068 HO7 BQ-F 3 G 4, orange 11.3 - 14.5 115.0 224.0 12
22069 HO7 BQ-F 4 G 4, orange 12.7 - 16.2 154.0 327.0 12
22080 HO7 BQ-F 5 G 4, orange 14.1 - 17.9 192.0 415.0 12
22073 HO7 BQ-F 2 X 6, orange 11.8 - 15.1 115.0 311.0 10
22070 HO7 BQ-F 3 G 6, orange 12.8 - 16.3 173.0 310.0 10
22071 H07 BQ-F 4 G 6, orange 14.2 - 18.1 230.0 496.0 10
22081 HO7 BQ-F 5 G 6, orange 15.7 - 20.0 288.0 586.0 10
22074 HO7 BQ-F 2 X 10, orange 15.6 - 19.9 192.0 428.0 8
22076 HO7 BQ-F 3 G 10, orange 16.8 - 21.4 288.0 640.0 8
22078 HO7 BQ-F 4 G 10, orange 18.6 - 23.6 384.0 738.0 8
22082 HO7 BQ-F 5 G 10, orange 20.4 - 25.9 480.0 968.0 8
22075 HO7 BQ-F 2 G 16, orange 17.9 - 22.8 307.0 600.0 6
22077 HO7 BQ-F 3 G 16, orange 19.5 - 24.7 461.0 758.0 6
22079 HO7 BQ-F 4 G 16, orange 21.3 - 27.0 614.0 1187.0 6
22083 HO7 BQ-F 5 G 16, orange 23.7 - 30.0 768.0 1475.0 6
22828 HO7 BQ-F 4 G 25, orange 26.8 - 31.9 960.0 1550.0 16
22829 HO7 BQ-F 5 G 25, orange 29.0 - 35.0 1220.0 1920.0 16
22830 HO7 BQ-F 4 G 35, orange 29.0 - 35.0 1344.0 2120.0 16
22831 HO7 BQ-F 5 G 35, orange 33.3 - 39.7 1680.0 2600.0 16
22832 HO7 BQ-F 4 G 50, orange 34.8 - 41.2 1920.0 2920.0 16
22833 HO7 BQ-F 5 G 50, orange 39.7 - 46.7 2400.0 3700.0 16
22835 HO7 BQ-F 4 G 70, orange 29.5 - 46.5 2688.0 3900.0 16
22836 HO7 BQ-F 5 G 70, orange 46.3 - 53.3 3368.0 5020.0 16
22837 HO7 BQ-F 4 G 95, orange 45.5 - 52.5 3648.0 5150.0 16
22838 HO7 BQ-F 5 G 95, orange 52.0 - 60.0 4560.0 6520.0 16
22839 HO7 BQ-F 4 G 120, orange 51.5 - 60.5 4608.0 6550.0 16
22840 HO7 BQ-F 5 G 120, orange 56.7 - 65.7 5760.0 8050.0 16
22841 HO7 BQ-F 4 G 150, orange 56.3 - 65.3 5760.0 7950.0 16
22842 HO7 BQ-F 5 G 185, orange 59.5 - 68.5 7104.0 9350.0 16
22843 HO7 BQ-F 4 G 240, orange 68.3 - 77.3 9216.0 12200.0 16
Technical Data Helukabel
  • EPR/PUR-insulated power cable according to DIN VDE 0282 part 10 and HD 22.10 S1
  • Temperature Range
    Flexing
    -40°C to +80°C (-40°F to +176°F)
    Fixed Installation
    -50°C to +90°C (-58°F to +194°F)
  • Permissible Operating Temperature
    at conductor 90°C
  • Nominal Voltage a.c., 50 Hz
    H05BQ-F: U0/U 300/500 V up to 1 mm²
    H07BQ-F: U0/U 450/750 V as of 1.5 mm²

  • Test Voltage
    H05BQ-F: 2000 V up to 1 mm²
    H07BQ-F: 2500 V as of 1.5 mm²
  • Minimum Bending Radius
    Flexing 5x cable Ø
    Fixed Installation 3x cable Ø
  • Radiation Resistance
    Up to 100x106 cJ/kg (up to 100 Mrad)
Approvals
RoHSCE RoHS
Cable Construction
  • Plain copper conductor stranded according to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and HD 383 cl. 5
  • Insulating jacket of rubber, compound EI6 according to DIN VDE 0282 part 1
  • Conductor identification according to DIN VDE 0293-308 and HD308 S2
  • Green-yellow grounding in the outer layer
  • Conductors stranded in layers with optimal lay-length (inner protection jacket permissible)
  • PUR-insulated outer jacket TMPU, to DIN VDE 0282 part 10, appendix A
  • Color: Orange (RAL 2003)
  • Minimum imprinted designation BQ
Application
These cables can be used for medium mechanical loads in dry, damp or wet environments, e.g. for connecting agricultural and commercial equipment and heaters provided there is no danger of contact with the hot parts or by radiation of heat. These robust and flexible cables are used for electrical tools such as drills and hand-held circular saws, as well as for portable motors and machinery in agriculture, at building sites, docks and refrigeration plants.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • Abrasion resistant
  • Notch resistant
  • Resistant to tearing and cutting
  • Good flexibility at low temperatures down to -40°C
  • Resistant to: oils and fats, petrol, water and weathering effects, UV-radiation, oxygen and ozone, hydrolysis, microbial attack
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • G = with green-yellow grounding
    x = without green-yellow grounding
  • These harmonized types H05BQ-F and H07BQ-F replace the VDE-standardized types
  • 7 G 1.5 mm² and 12 G 1.5 mm² are not contained in VDE, adapted to VDE, (H)07BQ
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
