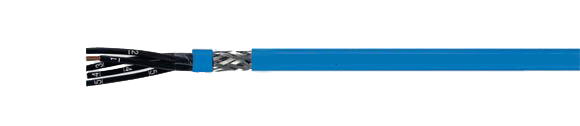

Helukabel Control Cable: OZ-BL-CY

Outer Jacket Blue, Intrinsic Safety, Flexible, EMI Preferred Type

Hi-Tech Controls, Inc, HELUKABEL wires and cables

Hi-Tech Controls, Helukabel, HELUKABEL OZ-BL-CY, EMC (EMI Preferred Type), Blue Outer Jacket, Intrinsic Safety, Flexible, Intrinsically Safe Cable, EMI Preferred Type
Helukabel Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
14028 OZ-BL-CY 2XO.75 6.1 40.0 59.0 18
14029 OZ-BL-CY 3X0.75 6.3 52.0 66.0 18
14030 OZ-BL-CY 4X0.75 6.8 60.0 77.0 18
14031 OZ-BL-CY 5X0.75 7.4 71.0 93.0 18
14088 OZ-BL-CY 7XO.75 8.2 91.0 130.0 18
14032 OZ-BL-CY 8X0.75 9.6 110.0 145.0 18
14033 OZ-BL-CY 10X0.75 10.3 137.0 180.0 18
14034 OZ -BL-CY 12X0.75 10.5 142.0 202.0 18
14035 OZ-BL-CY 18X0.75 12.7 212.0 292.0 18
14036 OZ-BL-CY 20X0.75 13.3 238.0 362.0 18
14037 OZ-BL-CY 25X0.75 15.0 281.0 415.0 18
14038 OZ-BL-CY 30X0.75 15.8 320.0 486.0 18
14039 OZ-BL-CY 34X0.75 17.2 345.0 523.0 18
14040 OZ-BL-CY 41X0.75 18.6 400.0 680.0 18
14041 OZ-BL-CY 2X1 6.4 50.0 65.0 17
14042 OZ-BL-CY 3X1 6.7 60.0 81.0 17
14043 OZ-BL-CY 4X1 7.2 71.0 98.0 17
14044 OZ-BL-CY 5X1 8.0 88.0 127.0 17
14045 OZ-BL-CY 7X1 8.7 111.0 158.0 17
14046 OZ-BL-CY 12X1 11.4 184.0 260.0 17
14047 OZ-BL-CY 18X1 13.5 260.0 380.0 17
14048 OZ-BL-CY 25X1 16.2 349.0 534.0 17
14049 OZ-BL-CY 34X1 18.5 486.0 741.0 17
14050 OZ-BL-CY 2X1.5 7.0 63.0 88.0 16
14051 OZ-BL-CY 3X1.5 7.5 80.0 100.0 16
14052 OZ-BL-CY 4X1.5 8.1 97.0 126.0 16
14053 OZ-BL-CY 5X1.5 9.0 119.0 160.0 16
14054 OZ-BL-CY 7X1.5 9.8 147.0 208.0 16
14055 OZ-BL-CY 12X1.5 12.8 267.0 338.0 16
14056 OZ-BL-CY 18X1.5 15.4 374.0 479.0 16
14057 OZ-BL-CY 25X1.5 18.4 526.0 705.0 16
14058 OZ-BL-CY 30X1.5 19.1 555.0 830.0 16
14059 OZ-BL-CY 34X1.5 20.8 629.0 900.0 16
Technical Data Helukabel
  • Control cable, special PVC with blue outer jacket for hazardous areas to hazard type -i- (=intrinsically safe)
  • For intrinsically safe installation marking as per DIN EN 60079-14 and IEC 60079-14 section 12.2.2 (VDE 0165 part 1)
  • Temperature Range
    Flexing
    -5°C to +80°C (+22°F to +176°F)
    Fixed Installation
    -40°C to +80°C (-40°F to +176°F)
  • Nominal Voltage U0/U 300/500 V
  • Test Voltage 3000 V
  • Breakdown Voltage min. 6000 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Mutual Capacitance
    Conductor/conductor approx. 140 nF/km
    Conductor/screen approx. 187 nF/km
  • Inductance approx. 0.68 mH/km
  • Coupling Resistance
    Max. 250 Ohm/km
  • Minimum Bending Radius
    Flexing 10x cable Ø
    Fixed Installation 5x cable Ø
  • Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)
Approvals
RoHSCE RoHS PCT
Cable Construction
  • Bare copper, fine wire conductors bunch stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • Conductor insulation of special PVC Z 7225
  • Black conductors with white continuous figure imprint to DIN VDE 0293 without ground conductor
  • Conductors stranded in layers with optimal lay-length
  • Conductor wrapping of plastic foil
  • Braiding, tinned copper wire shielding, approx. 85% coverage
  • Special PVC outer jacket TM2, to DIN VDE 0281 part 1 and HD 21.1
  • Color: Blue (RAL 5015)
Application

For hazardous areas the cables with special marking (blue) (hazard type-i-) used as flexible control and measuring cables to meet the requirements for the installation of electrical apparatus. These installations are not grounded and require a separate power circuit. Those cables are not suitable for underground laying.
The copper braided shielding ensures the transmission of data signals and free from interference.
EMI = Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of the copper braiding on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.

Properties
  • Extensively oil resistant
    Chemical Resistance - see table Technical Information.
  • PVC self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • For underground laying use NYY with blue outer sheath
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
Cable Accessories
  • Coming Soon!
